1371230000 - Compact 40P Interface Unit, 59mm Depth, RoHS Compliant

1371230000 - Compact 40P Interface Unit, 59mm Depth, RoHS Compliant

SKU: 1371230000 Download PDF

Variant:
  • 1371230000 - Compact 40P Interface Unit, 59mm Depth, RoHS Compliant
Now $238.18
BEFORE   $0.00 Now $238.18
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

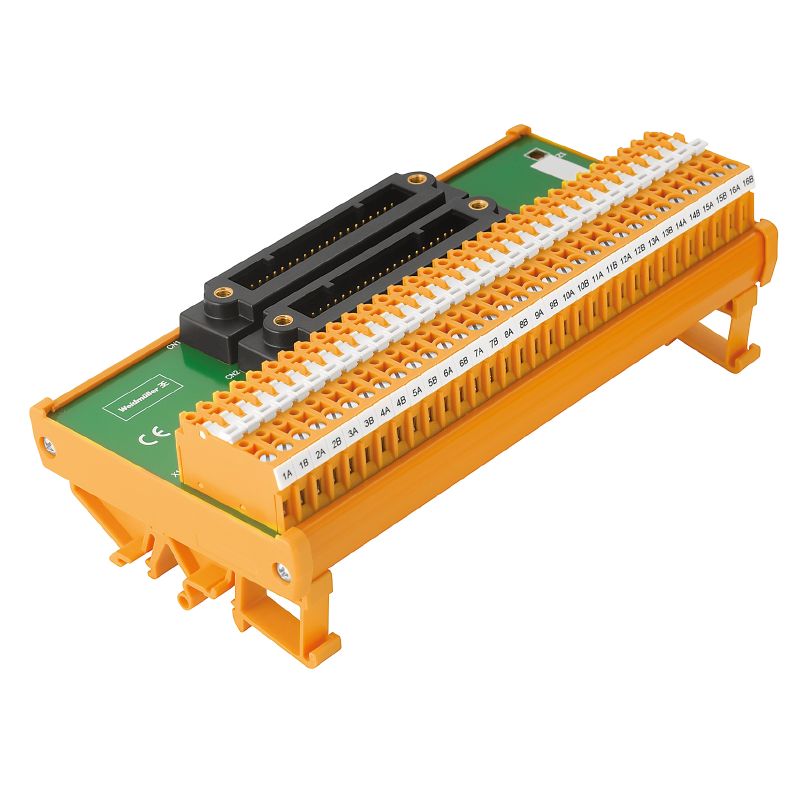

Discover the TBY-RS-AIO-I-2KS-Z Interface unit, designed with two 40-pin KS connections This compact unit measures 170 mm in width, 87 mm in height, and has a depth of 59 mm, weighing in at only 285 grams It meets RoHS standards and is exempt under applicable regulations With an operating temperature range of -25 to 70 degrees Celsius and a safe storage range of -40 to 85 degrees Celsius, this unit is built for resilience and reliability.

Features and Benefits:

    •No LED status display per channel.

    •Disconnection per channel available.

    •Contactor present.

    •Rated for a maximum current of 1 A per channel.

    •Tension-clamp connection type.

Specifications:

 Depth 59 mm
 Height 87 mm
 Width 170 mm
 Net weight 285 g
 Storage temperature -40...85 °C
 Operating temperature -25...70 °C
 Operating voltage 50 V AC / 70 V DC
 Max. current for common pole 1 A
 Max. current per channel 1 A
 Insulation coordination (EN50178) {'Rated insulation voltage': '< 50 V AC', 'Surge voltage category': 'III', 'Pollution severity level': '2', 'Pulse voltage test (1,2/50μs)': '0.8 kV', 'Insulation test voltage AC': '0.35 kV'}
 Connection (field side) LMNZF 5.08mm
 Connection on control side 2 x KS (40P)
 Number of poles (control side) 40-pole plug
 Clamping range, max. 2.5 mm²
 Clamping range, min. 0.13 mm²
 Max. wire cross-section, AWG AWG 14
 Min. wire cross-section, AWG AWG 24
 Stripping length 7.5 mm
