1371220000 - 170mm KS Connection Interface, RoHS Compliant, -25 to 70 °C

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

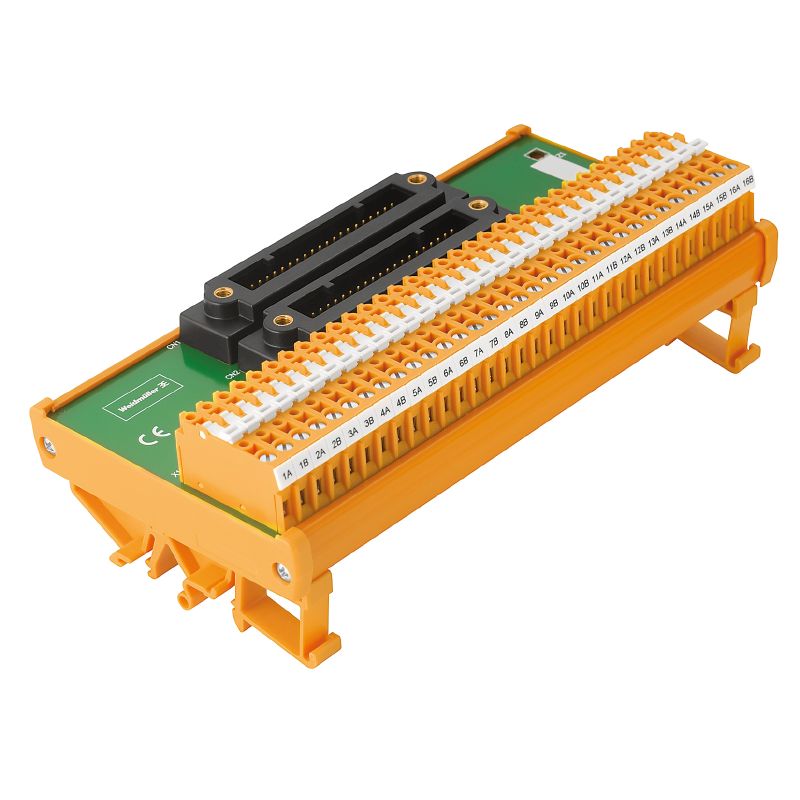

Introducing the TBY-RS-AIO-I-2KS-S connection interface, engineered for versatility and reliability This component includes 2 KS (40P) connections with a 508mm pitch and meets RoHS compliance along with specific environmental standards With dimensions of 170 mm wide, 87 mm high, and 56 mm deep, it’s designed to perform under diverse operational conditions Its operating temperature ranges from -25 °C to 70 °C, while it can be safely stored at temperatures between -40 °C and 85 °C.

Weighing in at 307 grams, this interface is a robust choice for your connectivity needs.

Features and Benefits:

•RoHS compliance status: Compliant with exemption.

•Test point type has a diameter of 2 mm.

•Screw connection type for supply and connection.

•Disconnection per channel available.

Specifications:
