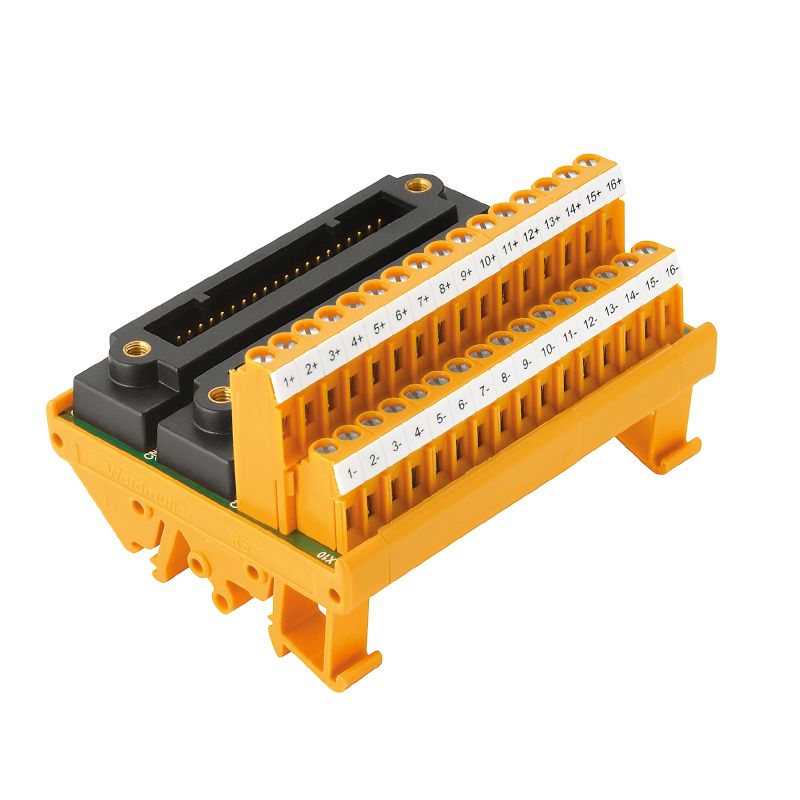

1371180000 - RS Interface 2xKS (40P) 5.08mm Pitch, 56mm Depth

1371180000 - RS Interface 2xKS (40P) 5.08mm Pitch, 56mm Depth

SKU: 1371180000   Download PDF

Select a Variant:
  • 1371180000 - RS Interface 2xKS (40P) 5.08mm Pitch, 56mm Depth
Qty:
Now $129.48   Web pricing policy
BEFORE   $0.00 Now $129.48 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Discover this advanced RS connection interface from the LL2N series, featuring 2 x KS (40P) in a compact design with a 508 mm pitch It meets RoHS compliance and holds an exemption for enhanced sustainability The dimensions of this interface are depth 56 mm, height 70 mm, and width 90 mm, making it an efficient choice for various applications It operates effectively in temperatures ranging from -25 to 70 °C and can be safely stored in environments between -40 and 85 °C.

Weighing in at 158 grams, this product combines functionality with a practical design.

Features and Benefits:

    •No LED status display per channel.

    •No disconnection per channel.

    •No type of test point.

    •No contactor.

    •No fuse per channel.

    •No LED status of the supply voltage.

    •No power supply fuse.

Specifications:

 Depth 56 mm
 Height 70 mm
 Width 90 mm
 Operating voltage 50 V AC / 70 V DC
 Max. current for common pole 1 A
 Max. current per channel 1 A
 Rated insulation voltage < 50 V AC
 Surge voltage category III
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 0.8 kV
 Insulation test voltage AC 0.35 kV
