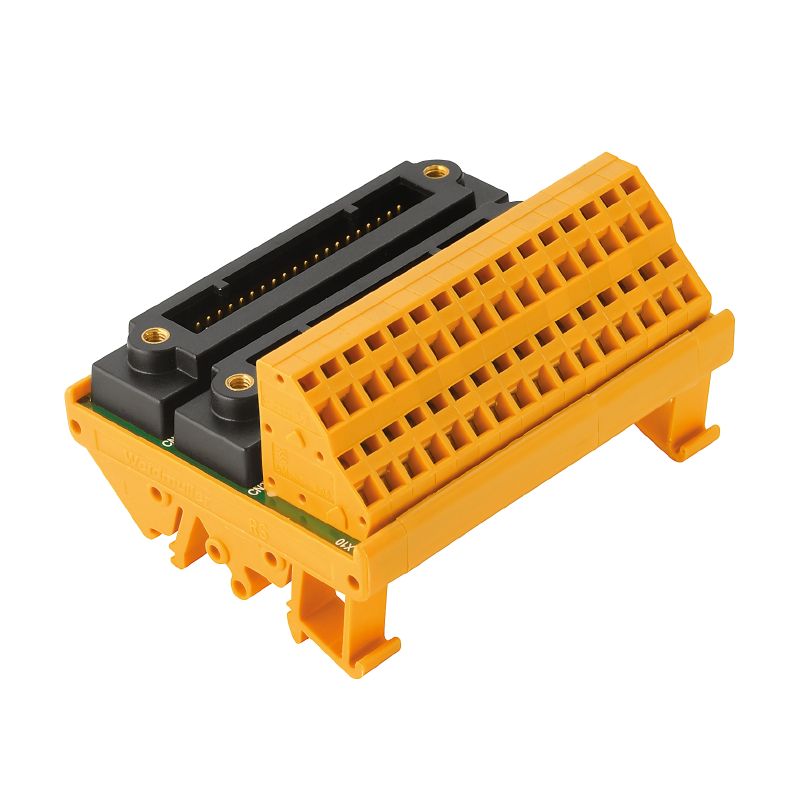

1371140000 - RS Interface Connector, 40 Pins, -25°C to 70°C, 52mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the TBY-RS-AIO-2KS-Z, a versatile component engineered with an RS interface that boasts a double 40-pin connector This product adheres to RoHS and REACH standards, emphasizing safety and environmental responsibility It operates efficiently in temperatures from -25°C to 70°C and can be stored in a range from -40°C to 85°C With dimensions of 52 mm in depth, 70 mm in height, and 90 mm in width, this unit weighs 141 g, making it compact and easy to handle.

Connections are established on the field side using an LM2NZF configuration of 508 mm, while the control side utilizes a dual KS (40P) setup It supports a maximum operating voltage of 50 V AC and permits a current of 1 A across both the common pole and individual channels Additional features include a surge voltage category of III and a pollution severity rating of 2, ensuring robust performance in various environments.

Ideal for applications requiring reliability and compliance with industry standards.

Features and Benefits:

•RoHS compliant with exemptions.

•REACH SVHC, Lead 7439-92-1 compliant.

•Tension-clamp connection type.

•No LED status display per channel.

•Designed for both solid and flexible wire types.

Specifications:
