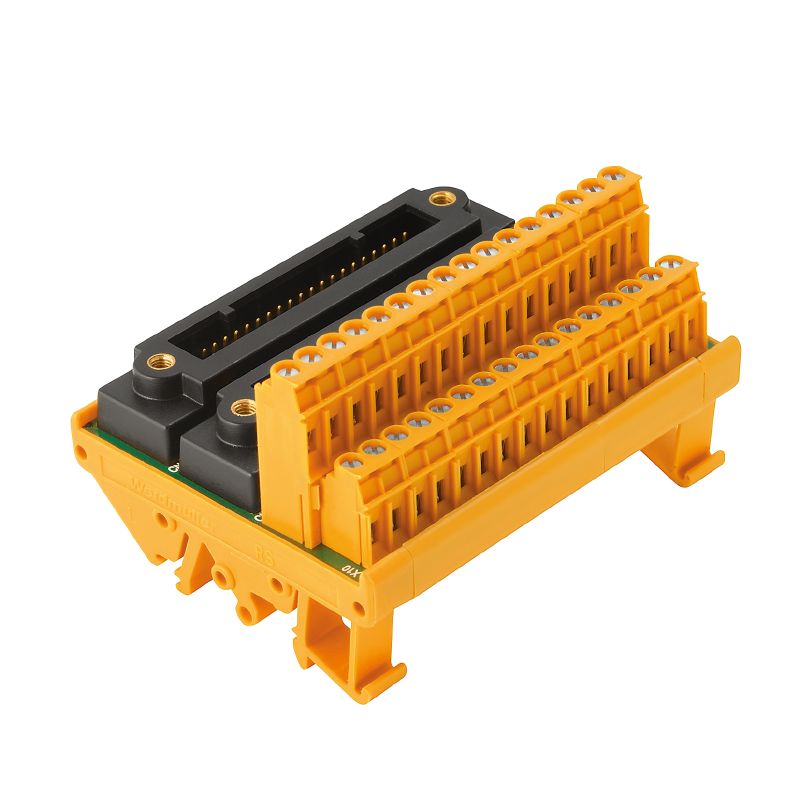

1371130000 - Versatile RS Interface Device with 2x 40P Connector

SKU: SKU: 1371130000 Download PDF

Variant:

1371130000 - Versatile RS Interface Device with 2x 40P Connector

Now $129.48

~~BEFORE $0.00~~ Now $129.48

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the TBY-RS-AIO-2KS-S, a practical interface device that adheres to the RS connection standard Equipped with a dual 2 x KS (40P) interface, it is versatile enough to support LL2N connections This device operates effectively within designated temperature ranges, making it suitable for both storage and operational use With RoHS compliance, you can trust its reliability across various applications.

Features and Benefits:

•RoHS compliant with exemption.

•Designed for connecting electrical components reliably.

•Supports multiple types of wire connections.

Specifications:

Depth	56 mm
Height	70 mm
Width	90 mm
Operating voltage	50 V AC / 70 V DC
Max. current for common pole	1 A
Max. current per channel	1 A
Rated insulation voltage	< 50 V AC
Surge voltage category	III
Pollution severity level	2
Pulse voltage test (1,2/50μs)	0.8 kV
Insulation test voltage AC	0.35 kV
Clamping range, max.	6 mm²
Clamping range, min.	0.13 mm²
Flexible with sleeve, max.	2.5 mm²
Flexible with sleeve, min.	0.5 mm²
Stripping length	6 mm
Tightening torque, max.	0.6 Nm
Tightening torque, min.	0.5 Nm
Type of connection	Screw connection
