1312770000 - Reliable RSD K10 Diode, 230V, UL Certified, -40°C to 60°C

1312770000 - Reliable RSD K10 Diode, 230V, UL Certified, -40°C to 60°C

SKU: 1312770000 Download PDF

Variant:
  • 1312770000 - Reliable RSD K10 Diode, 230V, UL Certified, -40°C to 60°C
Now $23.94
BEFORE   $0.00 Now $23.94
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

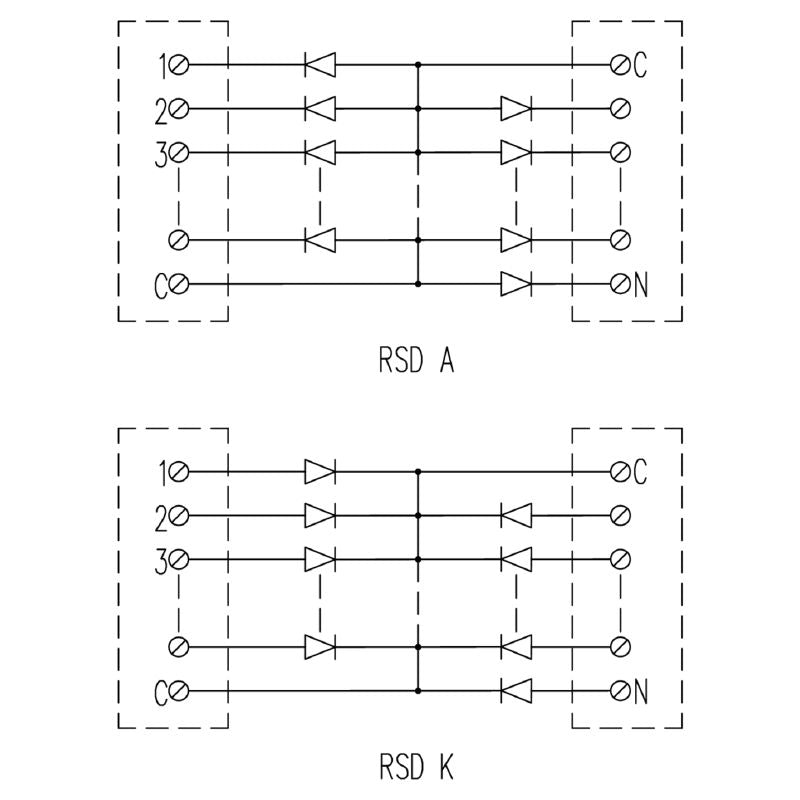

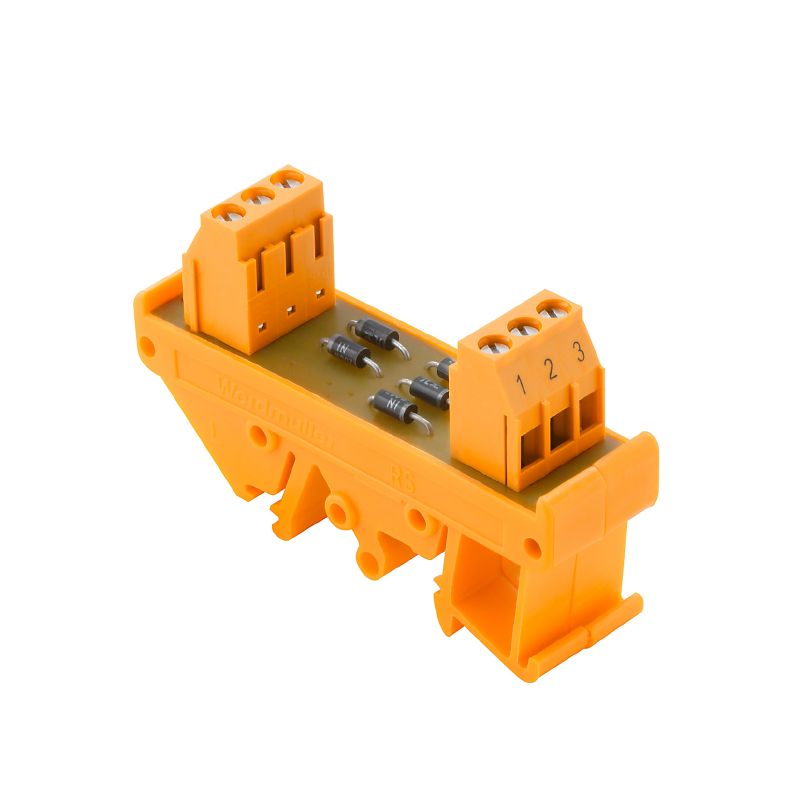

Introducing the RSD K10 LP/LP, a reliable component featuring a common cathode interface and secure screw connection This product boasts both ROHS compliance and UL certification (certificate number E141197), ensuring safety and quality standards are met Engineered to function effectively in diverse environments, it supports storage temperatures from -40°C to 60°C and operational conditions from 0°C to 55°C.

The unit includes a robust 1N4007 diode, handling a rated voltage of 230V and a maximum current of 1A This versatile component is ideal for various applications requiring these specific characteristics.

Features and Benefits:

    •Janode configuration.

    •Screw connection type.

    •RoHS compliance status with exemption.

    •REACH SVHC compliance with Lead 7439-92-1.

Specifications:

 Depth 42 mm
 Height 70 mm
 Width 35 mm
 Net weight 52 g
 Operating temperature UL, max. 50 °C
 Operating temperature UL, min. -25 °C
 Rated current I N 1 A
 Rated voltage U N 230 V
 Max. recurring peak voltage 1,000 V
 Rated insulation voltage 230 V
 Surge voltage category II
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 2 kV
 Insulation test voltage AC 0.35 kV
 Clamping range, max 6 mm²
 Clamping range, min 0.5 mm²
 Flexible with sleeve, max 2.5 mm²
 Flexible with sleeve, min 0.5 mm²
 Flexible, max. H05(07) V-K 4 mm²
 Flexible, min. H05(07) V-K 0.5 mm²
 Max. wire cross-section, AWG AWG 12
 Min. wire cross-section, AWG AWG 26
 Sleeve with plastic collar, max 2.5 mm²
 Solid, max. H05(07) V-U 6 mm²
 Solid, min. H05(07) V-U 0.5 mm²
 Stripping length 6 mm
 Tightening torque, max 0.6 Nm
 Tightening torque, min 0.5 Nm
