Description:

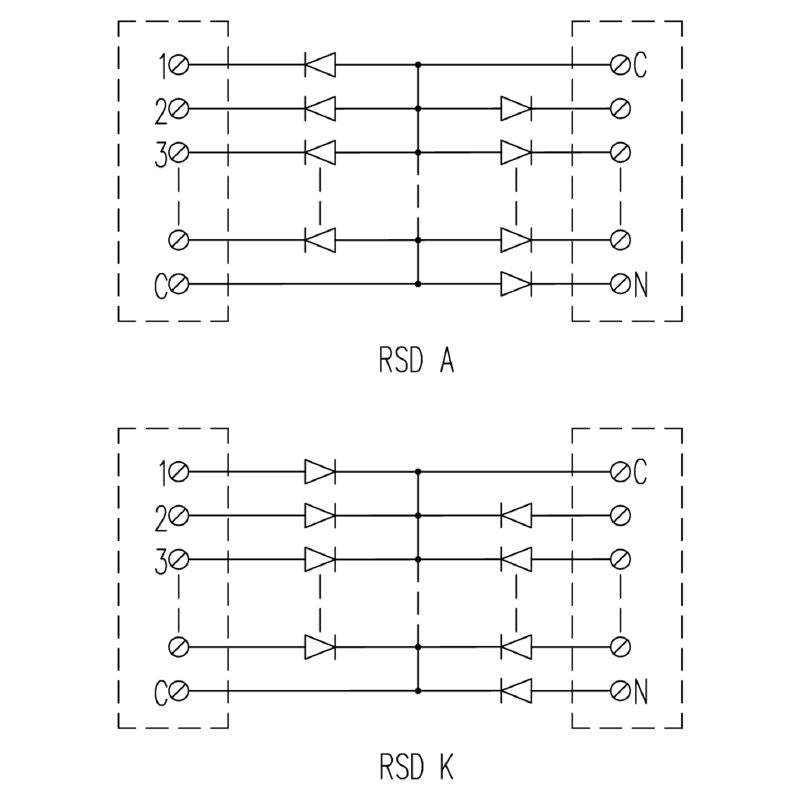

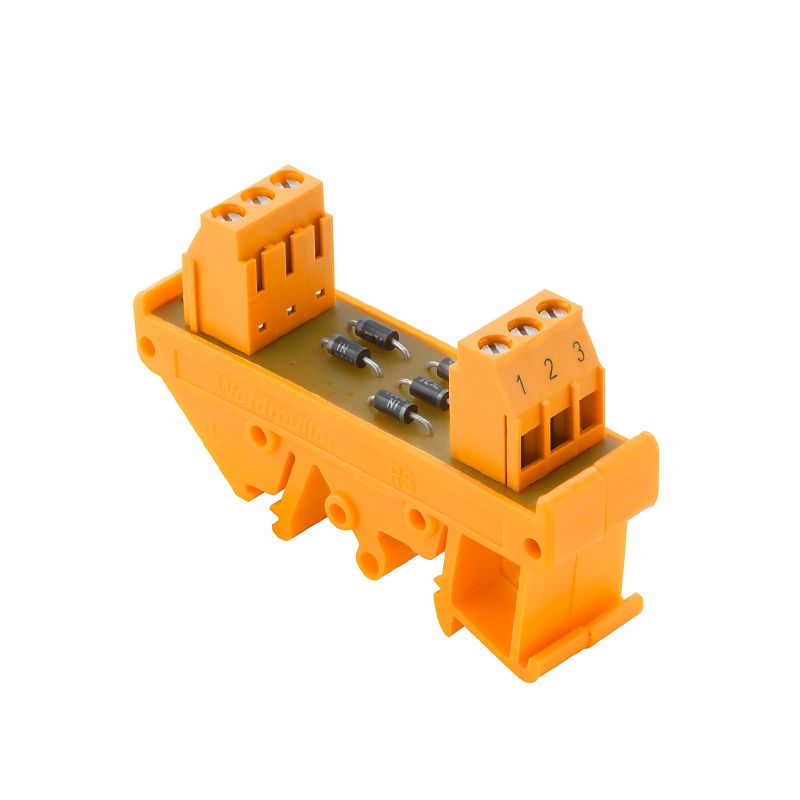

Introducing the RSD K5 LP/LP, a versatile component certified for various standards, including RoHS compliance It comes equipped with a common cathode interface and features a secure screw connection This compact unit is recognized under UL File number E141197, with dimensions tailored for a wide range of electronic applications, making it an essential addition for your projects.

Features and Benefits:

•Compliant with RoHS exemption 7a.

•Includes environmental compliance with REACH.

•Usable rated current of 1A.

•Operating temperatures ranging from 0 to 55 °C.

•Connection type through screw connection.

•Screw connection allows for easy installation.

Specifications:

Depth	42 mm
Height	70 mm
Width	20 mm
Net weight	33 g
Storage temperature	-40...60 °C
Operating temperature	0...55 °C
Rated voltage	230 V
Rated current per connection	1 A
Connection configuration	Shared anode
Clamping range, max	6 mm²
Clamping range, min	0.5 mm²
Max. recurring peak voltage	1000 V
Insulation coordination	According to DIN EN 50178
Rated insulation voltage	230 V
Surge voltage category	II
Pollution severity level	2
Pulse voltage test	2 kV
Insulation test voltage AC	0.35 kV
Wire cross-section	{'Max': 'AWG 12', 'Min': 'AWG 26'}
Stripping length	6 mm
Tightening torque	{'Max': '0.6 Nm', 'Min': '0.5 Nm'}
