1312020000 - 48V Relay Module with LED Display & 20-Pole Interface

1312020000 - 48V Relay Module with LED Display & 20-Pole Interface

SKU: 1312020000 Download PDF

Variant:
  • 1312020000 - 48V Relay Module with LED Display & 20-Pole Interface
Now $445.19
BEFORE   $0.00 Now $445.19
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

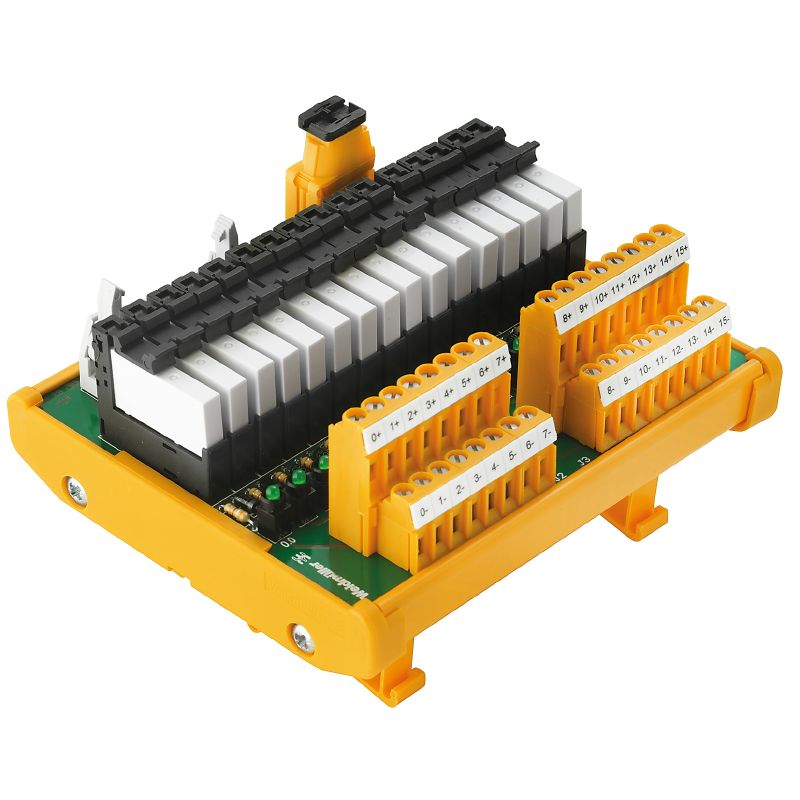

Introducing the RSM-16DI 48VDC S relay module, specifically crafted for control applications This model operates on a 48 V DC input and comes with multiple certifications, including RoHS compliance It features a user-friendly LED status display that clearly shows operational states through distinctive green and yellow indicators Equipped with a plug-in connector, this module also boasts a 20-pole interface for the control connections.

Built to last, it offers a remarkable mechanical service life of up to 10 million switching cycles, along with effective management of input and output voltages for reliable long-term operation.

Features and Benefits:

    •LED status display for both relay and supply voltage.

    •Designed for up to 10 million switching cycles.

    •Plug-in connector compliant with IEC standards.

    •Screw connection for reliability.

Specifications:

 Depth 72 mm
 Height 109 mm
 Width 124 mm
 Operating temperature -20...50 °C
 Storage temperature -20...70 °C
 Input voltage 48 V DC ± 10%
 Input current 10 mA
 Relay type RSS
 Material of contacts AgNi gold flashed
 Rated voltage 24 V DC ± 10%
 Max. DC continuous current 0.1 A
 Minimum contact current 2 mA
 Minimum contact voltage 5 V
 Insulation coordinates (EN50178) {'Rated input insulation voltage': '≤ 50 V DC', 'Rated output insulation voltage': '≤ 50 V DC', 'Overvoltage category input/input': 'III', 'Overvoltage category input/output': 'III', 'Pollution severity level': '2', 'Pulse voltage test (1,2/50μs)': '1.5 kV', 'Insulation test voltage AC': '0.35 kV', 'Clearance input/output': '≥ 6 mm'}
 Clamping range, max. 6 mm²
 Clamping range, min. 0.13 mm²
