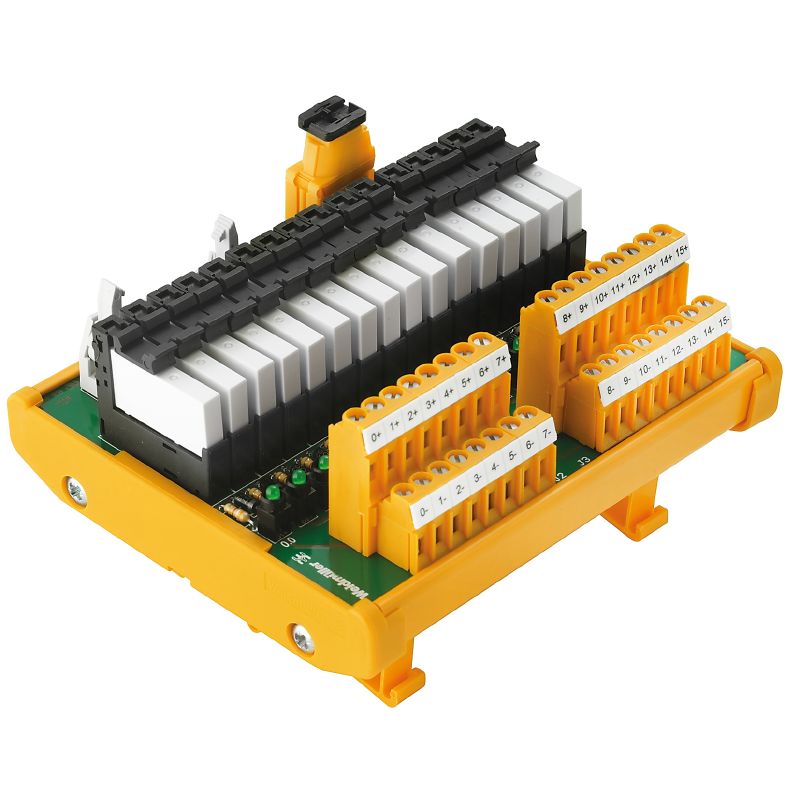

1312010000 - RSM-16DI Interface Device for Optos & LEDs

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-16DI 24VDC Z, an interface device from the esteemed RSM series, crafted to seamlessly integrate with Optos and LED systems This ROHS-compliant unit is designated with order number 1312010000 and features a GTIN of 4050118114454 Each device is packaged individually, ensuring you receive it in pristine condition.

Features and Benefits:

•LED status display per relay is green.

•LED status of the supply voltage is yellow.

•Power supply fuse rated at 2 A.

•20-pole plug connection on the control side.

•1-wire wiring system.

•Mechanical service life rated for 5 x 10^6 switching cycles.

•Input voltage tolerance of 24 V DC ± 10%.

•Input current of 13 mA.

•Relay type is RSS with AgNi gold flashed contacts.

•Rated voltage is 24 V DC ± 10%.

•Max. DC continuous current of 0.1 A.

•Minimum contact current is 1 mA.

•Minimum contact voltage is 1 V.

Specifications:
