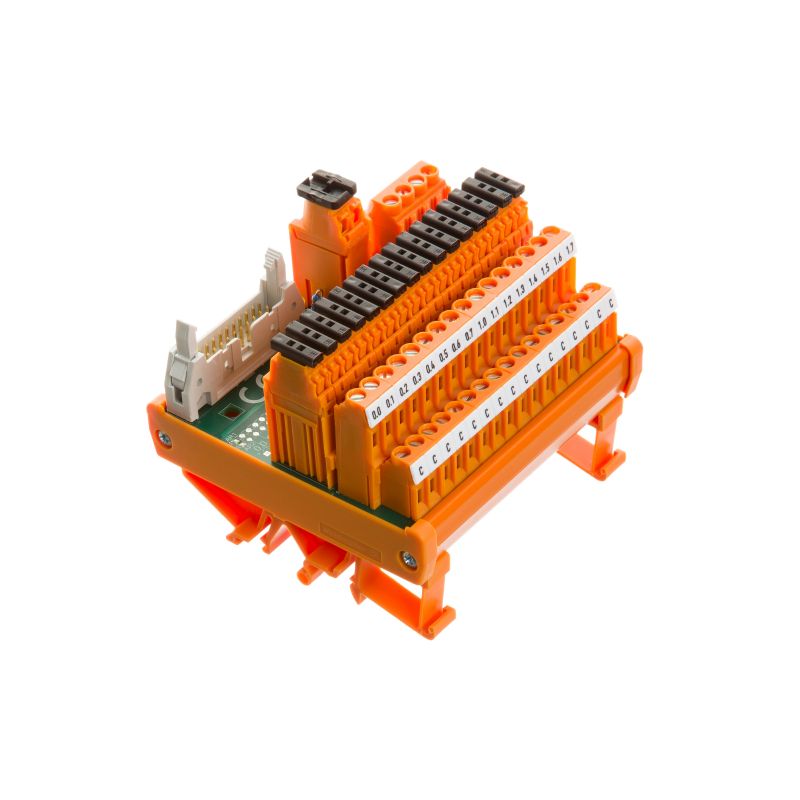

1311810000 - 72mm Deep 2-Wire Device with Screw Connection

1311810000 - 72mm Deep 2-Wire Device with Screw Connection

SKU: 1311810000   Download PDF

Select a Variant:
  • 1311810000 - 72mm Deep 2-Wire Device with Screw Connection
Qty:
Now $98.56   Web pricing policy
BEFORE   $0.00 Now $98.56 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the RS 16IO 2W I H S, a versatile device designed for reliable operation with a 2-wire system, featuring a secure screw connection This model is UL certified (E141197) and meets RoHS regulations with specified exemptions It measures 72 mm in depth, 87 mm in height, and 95 mm in width, weighing just 23247 grams Built to withstand a broad temperature range, it operates efficiently at a voltage of 25 V AC / 50 V DC with a maximum rated current of 2 A.

Equipped with tailored connection options, it also adheres to insulation coordination standards, making it a practical choice for your needs.

Features and Benefits:

    •UL compliant with file number E141197.

    •RoHS compliant with exemptions.

    •LED status display not available.

    •Disconnection available per channel.

    •Common pole polarity is selectable.

    •Type of connection is screw connection.

    •Flexible wire support.

    •Tightening torque specified.

Specifications:

 Depth 72 mm
 Height 87 mm
 Width 95 mm
 Net weight 232.47 g
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Operating voltage 25 V AC / 50 V DC
 Max. current per channel 1 A
 Total operating current 2 A
 Rated current I N 1 A
 Rated voltage U N ≤ 25 V AC 50 V DC
 Rated voltage DC U N (supply) 24 V
 Rated current (supply) 2 A
 Rated current fuse (supply) 3.15 A
 Fuse per channel No
 LED status of the supply voltage yellow
 Insulation coordination (EN50178) According to DIN EN 50178
 Rated insulation voltage <50 V AC
 Surge voltage category III
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 0.8 kV
 Insulation test voltage AC 0.35 kV
