Description:

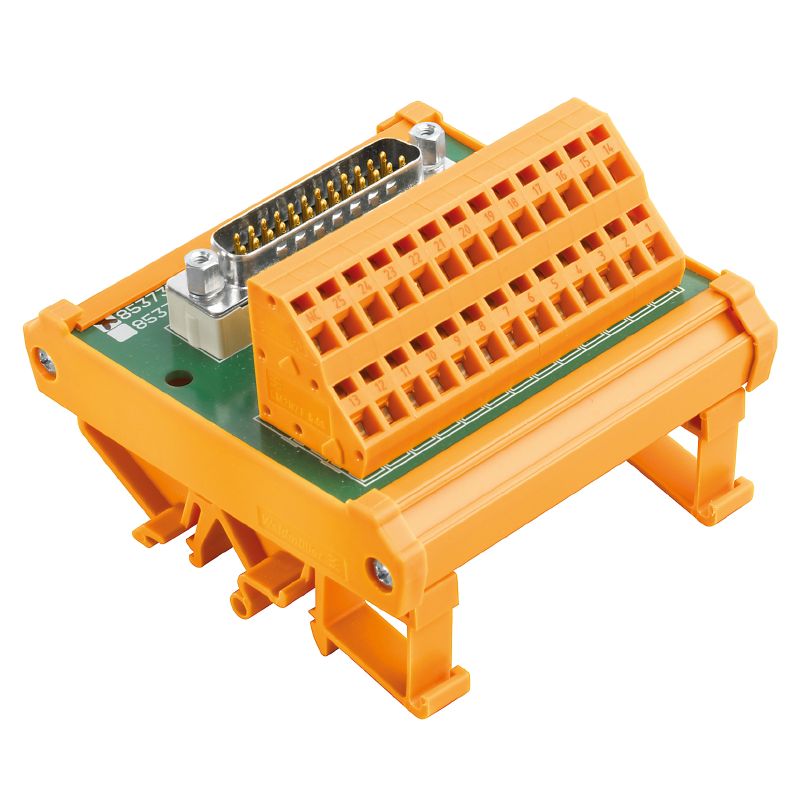

Introducing the RS 4AIO DP SD Z, a robust device featuring a 2-wire configuration and a reliable tension-clamp connection It meets RoHS compliance and holds a UL certification (E141197) With compact dimensions of 72 mm in depth, 87 mm in height, and 75 mm in width, this product weighs just 14168 grams It is designed to function effectively in temperatures ranging from -20 °C to 50 °C and can be stored at temperatures between -40 °C and 60 °C.

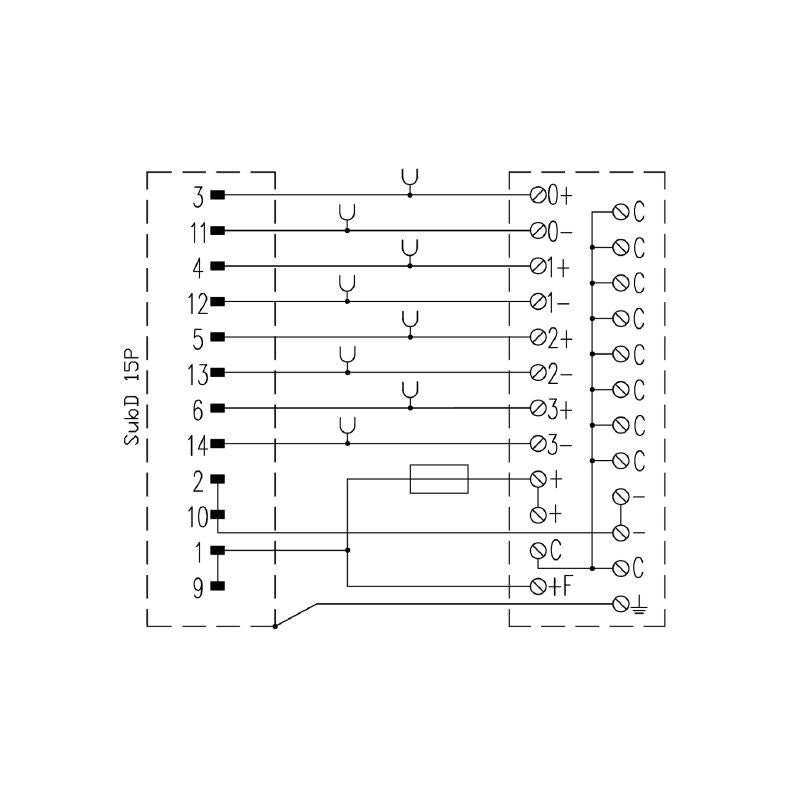

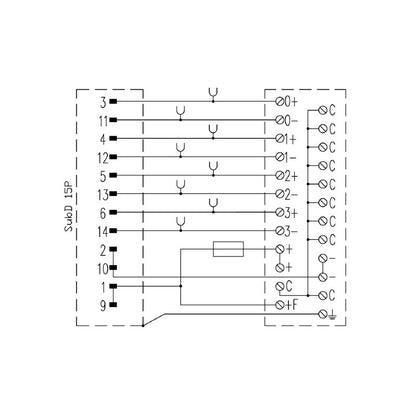

The device boasts a rated current of 05 A and supports voltages up to 25 V AC or 50 V DC Its versatile compact design accommodates various power connections, typically interfacing with a 15-pole D-sub connector on the control side, and is capable of handling a maximum current of 315 A.

Features and Benefits:

•Compact dimensions for efficient space utilization.

•Compatible with various wire sizes from AWG 26 to AWG 12.

•Utilizes a tension-clamp connection for secure wiring.

•RoHS compliant with exemptions.

•LED status display not included.

Specifications:
