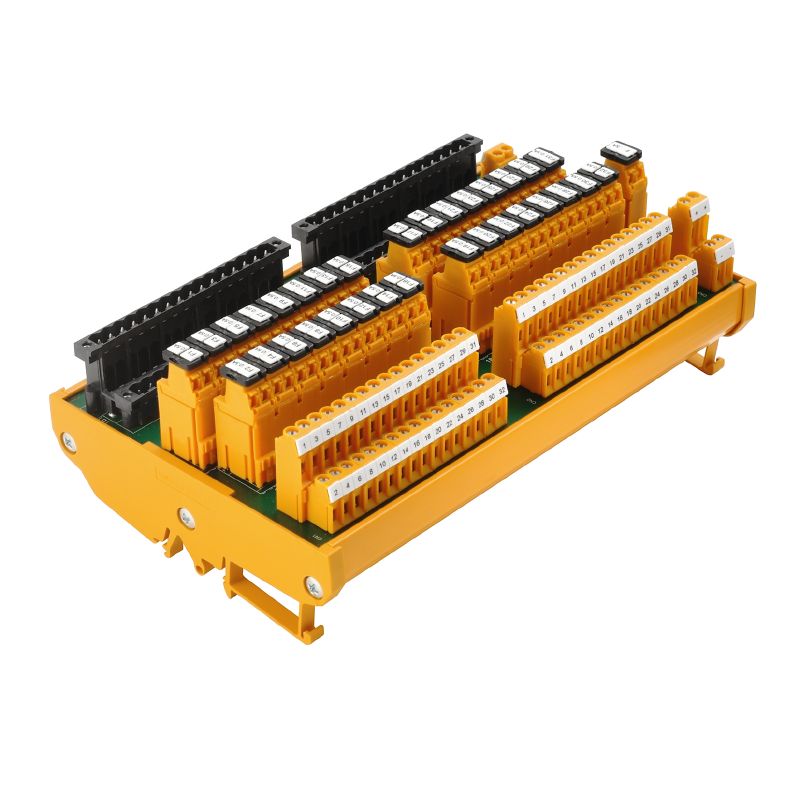

1246910000 - RoHS Certified Device, 95mm x 133mm x 217mm, UL E141197

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the FTA-C300-32DO-FUSE-S, a reliable product that meets RoHS compliance and holds a UL file number E141197 With precise dimensions of 95 mm (depth), 133 mm (height), and 217 mm (width), this unit weighs 70195 grams, ensuring a compact yet robust design Its operational capabilities are impressive, functioning within a storage temperature range of -40 °C to 60 °C and an operating temperature range of -25 °C to 50 °C.

The product adheres to RoHS regulations, indicating certain exemptions, while the REACH SVHC identification notes the presence of lead (7439-92-1) This model operates optimally at a maximum temperature of 25 °C in accordance with UL standards, accommodating an input voltage of 24 V DC and an operating current of 1 A, along with a supply rated current of 5 A for both supply and channel fuse ratings.

Visual indicators provide clarity, with LED lights in yellow indicating the supply voltage status, while channel statuses do not have displays For connection purposes, it features field side connections at a terminal of LL2N 508 mm and a control side connector designated as SLDV-THR 508, ensuring flexibility in installation.

Features and Benefits:

•RoHS compliant with exemptions.

•Connection data includes LL2N 5.08 mm on the field side.

•LED status indication of supply voltage.

•Dimensions of 95 mm x 133 mm x 217 mm.

•Rated voltage is 24 V DC ± 10%.

•Maximum current per channel is 1 A.

Specifications:
