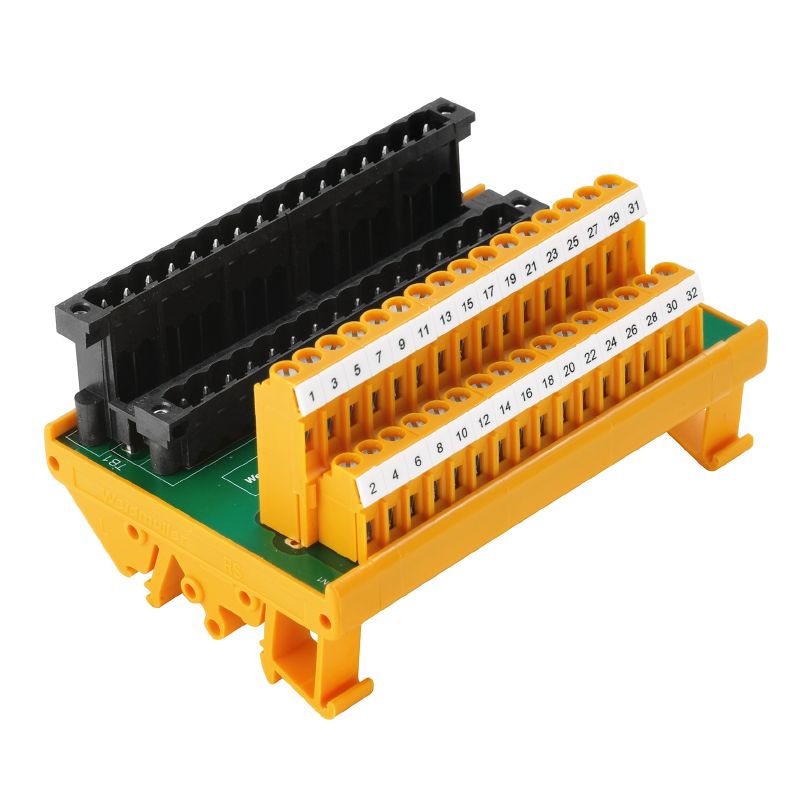

1223010000 - RS Interface Module, 56mm Deep, RoHS & UL Certified

1223010000 - RS Interface Module, 56mm Deep, RoHS & UL Certified

SKU: 1223010000 Download PDF

Variant:
  • 1223010000 - RS Interface Module, 56mm Deep, RoHS & UL Certified
Now $133.41
BEFORE   $0.00 Now $133.41
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the FTA-C300-16AO-SH-P, a product that conforms to essential standards with ROHS compliance and holds a UL certification (E141197) This unit is equipped with RS and 1-wire interface options and includes flying lead coupling for easy connectivity Please note, this item has been discontinued as of May 20, 2014 It measures 105 mm in width, 70 mm in height, and has a depth of 56 mm, weighing in at 131 grams.

The operating temperature range is between -25 °C and 50 °C, with a storage temperature tolerance from -40 °C up to 60 °C Additionally, it meets ROHS standards and includes certain exemptions This product also features detailed specifications for operating and maximum voltage, along with insulation coordination ratings.

Specifications:

 Depth 56 mm
 Height 70 mm
 Width 105 mm
 Net weight 131 g
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Operating voltage 250 V AC / 350 V DC
 Max. current per channel 1 A
 Rated current I N 1 A
 Rated voltage U N 250V AC / 350 V DC
 Insulation coordination According to DIN EN 50178
 Rated insulation voltage <250 V AC
 Surge voltage category II
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 2 kV
 Insulation test voltage AC 1.2 kV
 Connection (field side) SL/BLZ 5.08 mm
 Connection on control side SLDV-THR 5.08
 Number of poles (control side) 32-pole female
 Protective earth connection M4 round terminal
 Wiring system 1-wire
 LED status display per channel No
 Disconnection per channel No
