1222980000 - Compact 56mm RS Interface Device, UL Certified

1222980000 - Compact 56mm RS Interface Device, UL Certified

SKU: 1222980000 Download PDF

Variant:
  • 1222980000 - Compact 56mm RS Interface Device, UL Certified
Now $136.45
BEFORE   $0.00 Now $136.45
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

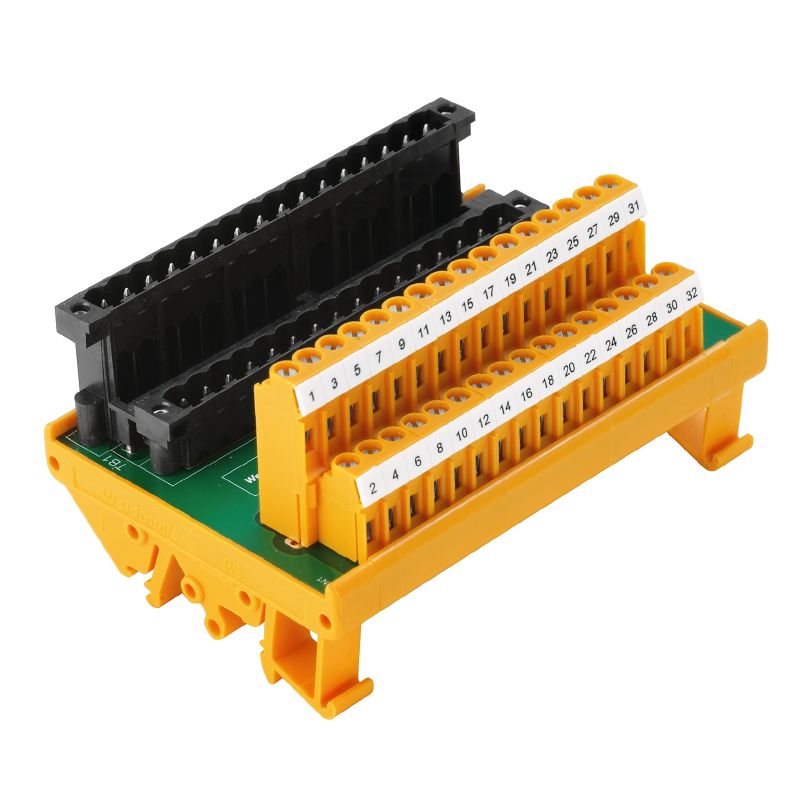

Introducing the FTA-C300-16AO-SH-S, a robust solution tailored for RS interface applications with a reliable screw connection This product meets RoHS standards and carries the UL certification number E141197, ensuring safety and compliance It boasts dimensions of 56 mm deep, 70 mm tall, and 105 mm wide, making it a compact choice for various setups Weighing in at 186 g, it is lightweight yet sturdy.

Its operational temperature range spans from -25 °C to 50 °C, while it can be stored in environments from -40 °C to 60 °C, making it versatile for diverse conditions.

Specifications:

 Operating voltage 250 V AC / 350 V DC
 Max. current per channel 1 A
 Rated current I N 1 A
 Rated voltage U N 250V AC / 350 V DC
 Insulation coordination (EN50178) According to DIN EN 50178
 Rated insulation voltage <250 V AC
 Surge voltage category II
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 2 kV
 Insulation test voltage AC 1.2 kV
 Connection (field side) LP2N 5.08mm
 Connection on control side SLDV-THR 5.08
 Number of poles (control side) 32-pole female
 Protective earth connection M4 round terminal
 Wiring system 1-wire
 Clamping range, max 6 mm²
 Clamping range, min 0.13 mm²
 Flexible with sleeve, max 2.5 mm²
 Flexible with sleeve, min 0.5 mm²
 Flexible, max. H05(07) V-K 4 mm²
 Flexible, min. H05(07) V-K 0.5 mm²
 Solid, max. H05(07) V-U 6 mm²
 Solid, min. H05(07) V-U 0.5 mm²
 Stripping length 6 mm
 Tightening torque, max 0.6 Nm
 Tightening torque, min 0.5 Nm
