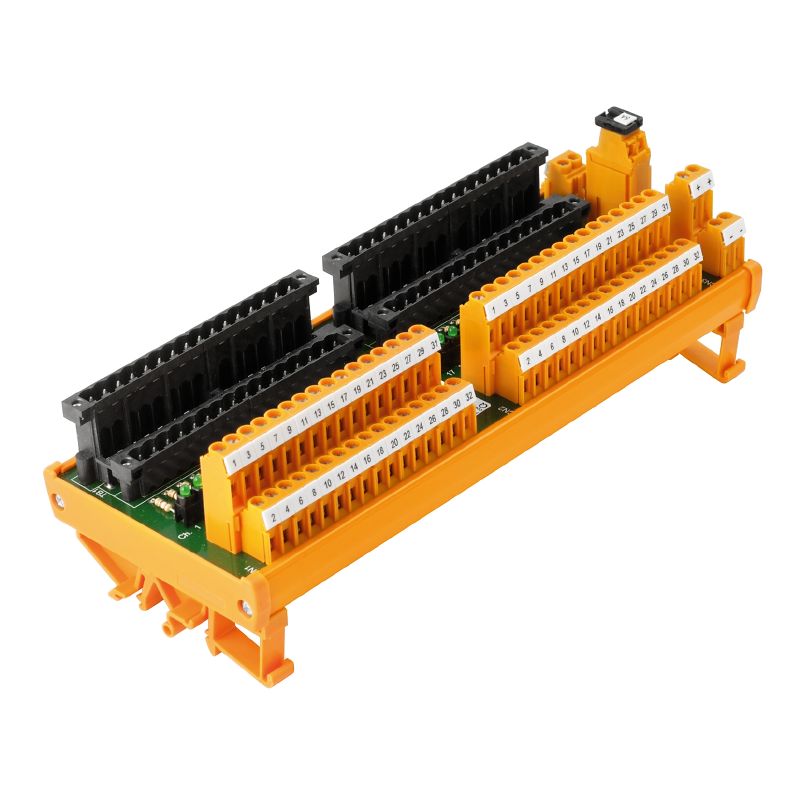

1221600000 - FTA-C300 Dimensions 65x87x216mm, RoHS Compliant & UL Certified

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the FTA-C300-32DO-LD-Z, a product identified by order number 1221600000, designed to meet RoHS standards and proudly carrying UL certificate number E141197 Please note that this product has been marked as discontinued With precise dimensions of 216 mm in width, 87 mm in height, and a depth of 65 mm, it has a net weight of 383 grams The device operates effectively within a temperature range, capable of withstanding storage conditions from -40 °C to 60 °C, and operational temperatures ranging from -25 °C to 50 °C.

This item adheres to essential environmental directives, including RoHS and REACH regulations, while containing Lead classified as a substance of very high concern The specifications showcase a rated operating voltage of 24 V DC ± 10%, a channel maximum current of 1 A, and a total supply current of 5 A, ensuring reliable performance for your needs.

Features and Benefits:

•Compliant with exemption under RoHS.

•LED status display for each channel is green.

•Yellow LED status indicates supply voltage.

•Power supply fuse rated at 5 A.

Specifications:
