1221590000 - RoHS Compliant Device, 216mm Wide, UL Certified

1221590000 - RoHS Compliant Device, 216mm Wide, UL Certified

SKU: 1221590000 Download PDF

Variant:
  • 1221590000 - RoHS Compliant Device, 216mm Wide, UL Certified
Now $309.89
BEFORE   $0.00 Now $309.89
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

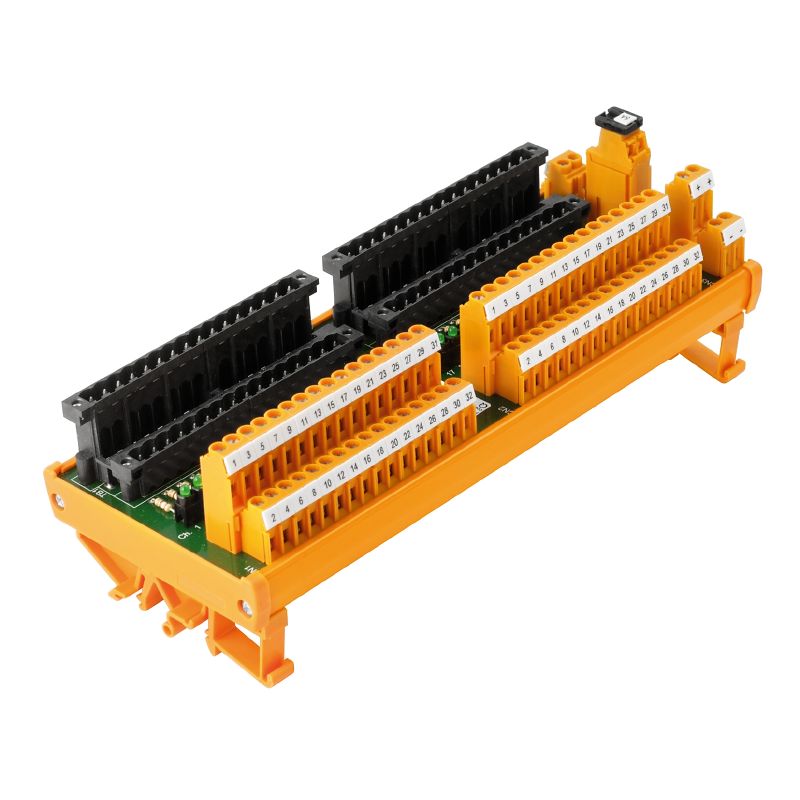

Introducing the FTA-C300-32DO-LD-S, a reliable component that meets RoHS compliance and has received multiple certifications With a UL file number E141197, this product boasts dimensions of 216 mm in width, 87 mm in height, and 65 mm in depth, weighing in at 410 g It operates efficiently within a temperature range of -25 °C to 50 °C, while its storage temperature can endure between -40 °C and 60 °C.

Additionally, this product complies with Environmental Product Compliance standards, making it a responsible choice for your needs.

Features and Benefits:

    •Compliant with RoHS with exemption.

    •LED status display with green and yellow indicators.

    •Rated current of 1 A per channel.

    •Operating voltage of 24 V DC ± 10%.

    •No fuse per channel.

    •Connection on control side utilizes SLDV-THR 5.08.

Specifications:

 Depth 65 mm
 Height 87 mm
 Width 216 mm
 Operating temperature UL, max. 25 °C
 Operating temperature UL, min. 0 °C
 Rated current I N 1 A
 Rated voltage U N 24 V DC
 Rated voltage DC U N (supply) 24 V
 Rated current (supply) 5 A
 Power supply fuse 5 A
 Max. current per channel 1 A
 Insulation coordination (EN50178) {'Rated insulation voltage': '<50 V AC', 'Surge voltage category': 'III', 'Pollution severity level': '2', 'Pulse voltage test (1,2/50μs)': '0.8 kV', 'Insulation test voltage AC': '0.35 kV'}
 Clamping range, max. 6 mm²
 Clamping range, min. 0.13 mm²
 ETIM 6.0 EC002780
 ECLASS 9.0 27-14-11-52
