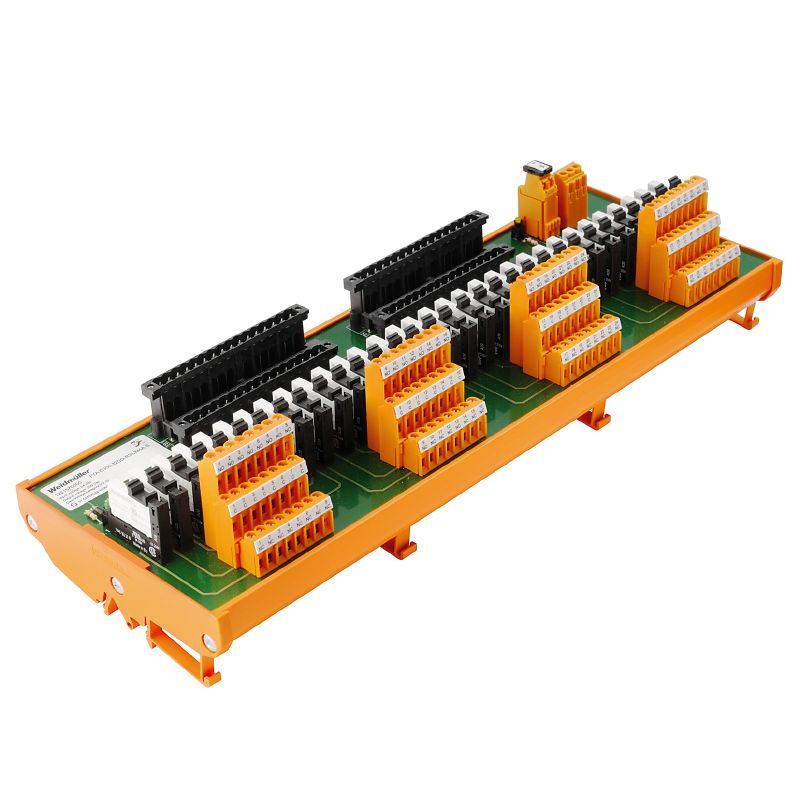

1221570000 - RS Communication Interface with 1-Wire Technology and Screw Connections

1221570000 - RS Communication Interface with 1-Wire Technology and Screw Connections

SKU: 1221570000 Download PDF

Variant:
  • 1221570000 - RS Communication Interface with 1-Wire Technology and Screw Connections
Now $1,018.59
BEFORE   $0.00 Now $1,018.59
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a specialized interface device that leverages RS communication along with 1-wire technology, featuring a reliable screw connection functionality This product adheres to RoHS standards and is provided with a distinct order number for easy reference It's an ideal interface solution for a variety of applications that require specific connection types and tailored operational conditions.

Features and Benefits:

    •LED status display in green for each relay.

    •No disconnector for relays.

    •No contactor present.

    •No fuses for relays.

    •LED indication for supply voltage in yellow.

    •5 A power supply fuse.

    •64-pole control side connection.

    •Potential-free contact output type.

    •Screw connection for both field and supply connections.

Specifications:

 Depth 95 mm
 Height 133 mm
 Width 368 mm
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Input voltage 24 V DC ± 10%
 Input current 13 mA
 Relay type RSS
 Material of contacts AgNi 90/10
 Rated voltage 250 V
 Max. AC continuous current 4 A
 Mechanical service life 5 x 10^6 switching cycles
 Overvoltage category input/input II
 Overvoltage category input/output III
 Overvoltage category output/output II
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 6 kV
 Insulation test voltage AC 1.2 kV
 Clearance input/output ≥ 5.5 mm
 Clearance input/input ≥ 0.2 mm
 Clearance output/output ≥ 1.17 mm
