1221560000 - ROHS Compliant Product, 216mm x 87mm x 65mm, UL Certified

1221560000 - ROHS Compliant Product, 216mm x 87mm x 65mm, UL Certified

SKU: 1221560000 Download PDF

Variant:
  • 1221560000 - ROHS Compliant Product, 216mm x 87mm x 65mm, UL Certified
Now $237.67
BEFORE   $0.00 Now $237.67
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

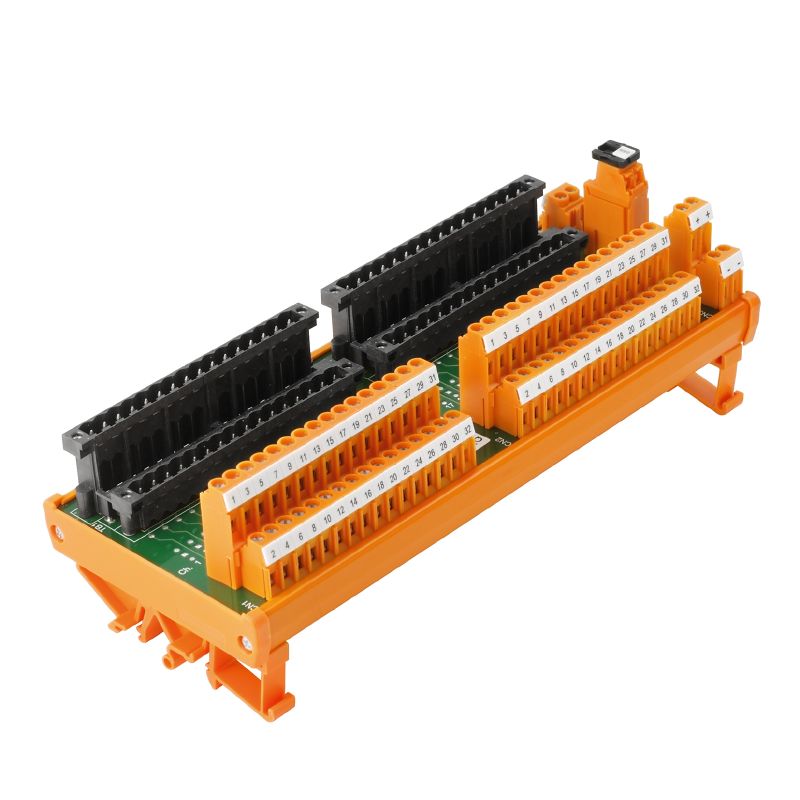

Introducing the FTA-C300-32DIOHV-Z, a device compliant with ROHS standards and proudly bearing UL certification E141197 Please note that this item is no longer in production and will be available until May 20, 2014 The dimensions are as follows: depth of 65 mm (2559 inches), height of 87 mm (3425 inches), and width of 216 mm (8504 inches), with a compact weight of 375 grams It operates effectively within a storage temperature range of -40 to 60 °C and handles operational temperatures from -25 to 50 °C, ensuring reliable performance across a variety of conditions.

Features and Benefits:

    •LED status display per channel: No.

    •Type of test point: No.

    •Fuse per channel: No.

    •LED status of the supply voltage: yellow.

    •Power supply fuse: 630 mA.

Specifications:

 Operating temperature UL, max. 25 °C
 Operating temperature UL, min. 0 °C
 Rated current I N 1 A
 Rated voltage U N 250 V AC
 Rated voltage DC U N (supply) 24 V
 Rated current (supply) 0.63 A
 Rated current fuse (supply) 0.63 A
 Operating voltage ≤ 250 V AC
 Max. current per channel 1 A
 Rated insulation voltage <250 V AC
 Surge voltage category II
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 2 kV
 Insulation test voltage AC 1.2 kV
 Clamping range, max. 2.5 mm²
 Clamping range, min. 0.13 mm²
 Clamping range (supply), min. 0.13 mm²
 Clamping range (supply), max. 2.5 mm²
 RoHS Compliance Status Compliant with exemption
 RoHS Exemption 6c, 7cI
 REACH SVHC Lead 7439-92-1
 SCIP 2e4a427f-c282-4ebf-8ee2-8af7c9348f4e
