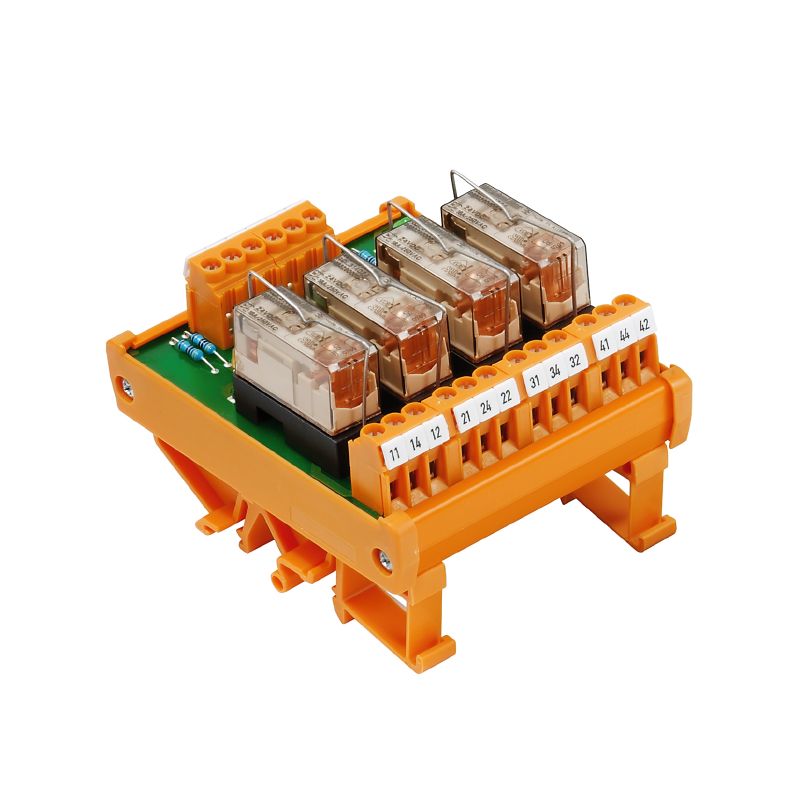

1173461001 - 24V AC/DC Relay Module with 4 Contacts and Screw Connection

SKU: SKU: 1173461001 Download PDF

Variant:

1173461001 - 24V AC/DC Relay Module with 4 Contacts and Screw Connection

Now $192.74

~~BEFORE $0.00~~ Now $192.74

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM 4RS 24VUC LP relay module, a reliable component of the RSM-Series This module features four contacts, including a CO contact made from high-quality AgNi 90/10 It operates on a control voltage of 24 V AC / DC and can handle a maximum continuous current of 6 A Installation is straightforward with its screw connection design Please note that this model does not include a test button.

Features and Benefits:

•RoHS compliant.

•No test button available.

•Mechanical service life of 30 million switching cycles.

•Fast switch-on delay of ≤ 10msdc/10msac.

•Fast switch-off delay of ≤ 15msdc/20msac.

Specifications:

Depth	76 mm
Height	87 mm
Width	75 mm
Net weight	157.02 g
Storage temperature	-40 °C to 60 °C
Operating temperature	-25 °C to 50 °C
Operating voltage AC U N (input)	24 V
Rated voltage AC U N (output)	250 V
Rated current I max (output)	6 A
Power rating	0.45 W / 0.7 VA
Humidity	40 °C / 93 % relative humidity, no condensation
Operating temperature UL, max	50 °C
Operating temperature UL, min	0 °C
