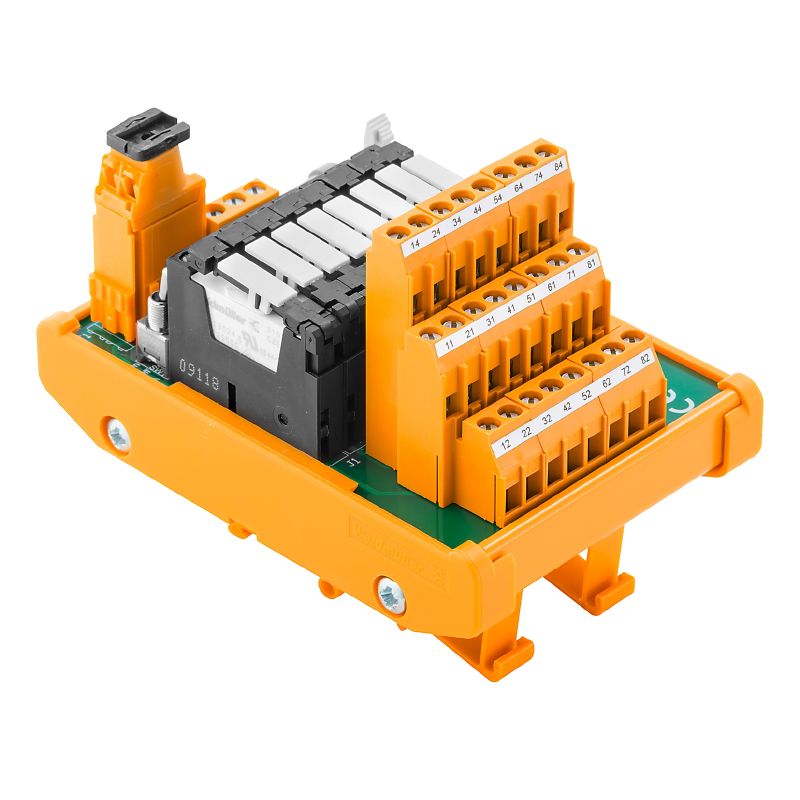

1128990000 - 8-Channel Interface Switch, 85mm Deep, UL Certified

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-8 PLC C SW 1CO S, a versatile interface for RSM PLC systems, designed to handle eight channels with a switch and equipped with an RSS screw connection This product boasts a UL certification (number E141197) and meets ROHS compliance standards Its compact size measures 85 mm in depth, 109 mm in height, and 75 mm in width, weighing in at a net total of 5544 g The RSM-8 is capable of operating across a temperature range of -25 to 50 °C, making it suitable for various environments and conditions.

Features and Benefits:

•Environmental compliance with RoHS.

•LED indicators for status display.

•Mechanical durability with 5 million switching cycles.

Specifications:
