1126630000 - RS ELCO 20-Pole Plug-in Connector, RoHS Certified, -25 to 50 °C

SKU: SKU: 1126630000 Download PDF

Variant:

1126630000 - RS ELCO 20-Pole Plug-in Connector, RoHS Certified, -25 to 50 °C

Now $132.89

~~BEFORE $0.00~~ Now $132.89

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

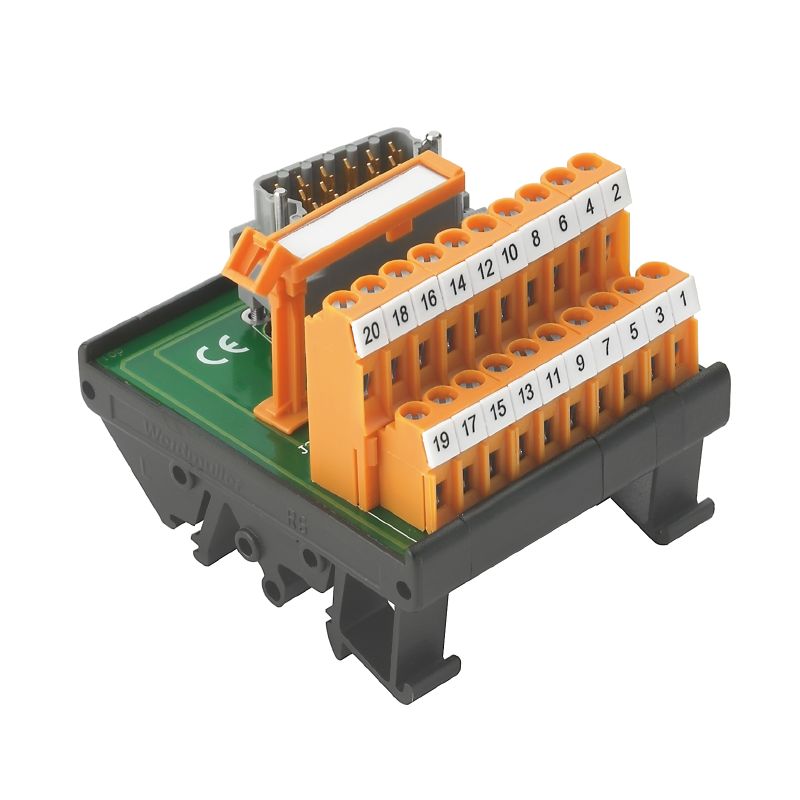

Introducing the RS ELCO plug-in connector, specifically crafted for effective interfacing This component boasts 20 poles and adheres to the LP2N connection specification with a pin spacing of 508mm It meets RoHS standards and is UL certified under the number E141197, ensuring compliance and reliability Designed to function optimally in temperatures ranging from -25°C to 50°C, this connector is a versatile solution for your connectivity needs.

Features and Benefits:

•Compliant with RoHS exemption 6c.

•Manufacturer's approval with UL certification.

•20-pole plug configuration.

•Screw connection type.

•Constructed with phosphor bronze alloy contacts.

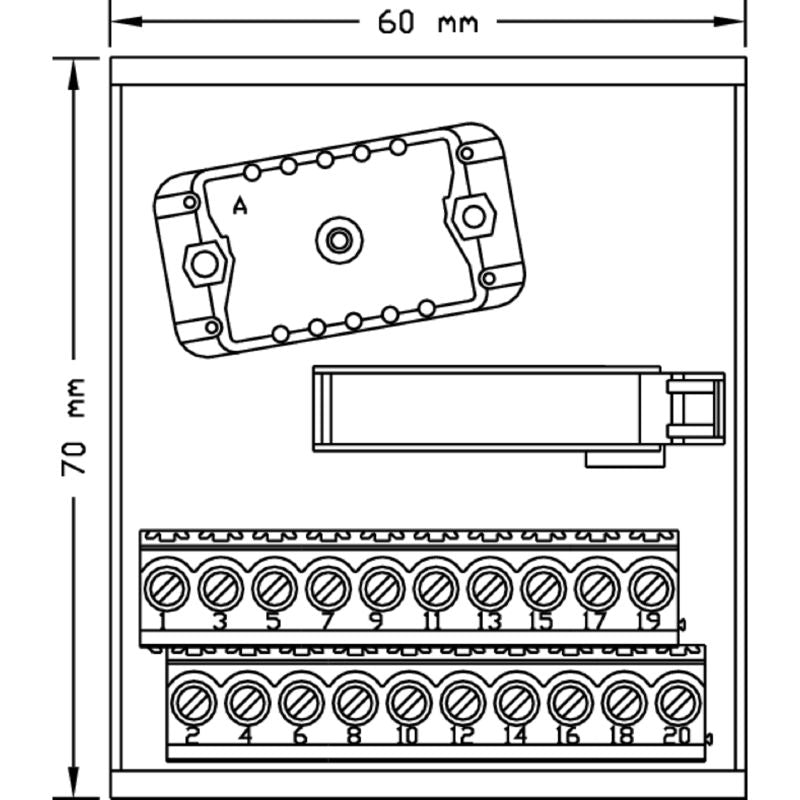

Specifications:

Depth	60 mm
Height	70 mm
Width	60 mm
Net weight	121 g
Operating temperature - max	50 °C
Operating temperature - min	-25 °C
Rated current I N	1.5 A
Rated voltage U N	150 V AC / 200 V DC
Clamping range, max	6 mm²
Clamping range, min	0.5 mm²
Tightening torque, max	0.6 Nm
Tightening torque, min	0.5 Nm
Rated insulation voltage	<150 V AC
Pollution severity level	2
