1114661001 - 8-Contact Relay Module, 115V AC/DC, 6A Capacity

1114661001 - 8-Contact Relay Module, 115V AC/DC, 6A Capacity

SKU: 1114661001 Download PDF

Variant:
  • 1114661001 - 8-Contact Relay Module, 115V AC/DC, 6A Capacity
Now $191.85
BEFORE   $0.00 Now $191.85
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

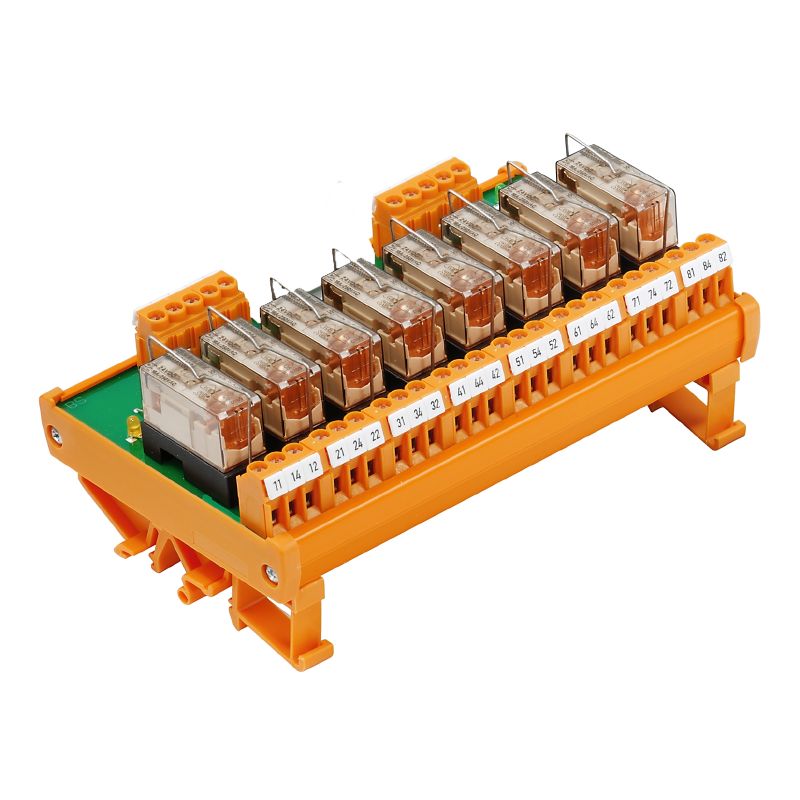

Introducing the RSM 8RS series relay module, an efficient and reliable component featuring eight CO contacts crafted from AgNi 90/10 alloy It operates effectively at a control voltage of 115 V AC/DC and supports a maximum continuous current of 6 A For easy installation, it utilizes screw connections, and please note that it does not include a built-in test button Ideal for various applications, this relay module combines robust engineering with practical functionality.

Features and Benefits:

    •Screw connection.

    •Does not have a test button available.

    •RoHS compliant.

Specifications:

 Depth 76 mm
 Height 87 mm
 Width 145 mm
 Net weight 352 g
 Storage temperature -40 °C to 60 °C
 Operating temperature -25 °C to 50 °C
 Rated voltage AC U N (input) 115 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 5.5 A
 Mechanical service life 30 x 10^6 switching cycles
 Power rating 0.6 VA
 Humidity 40 °C / 93 % relative humidity, no condensation
