1114561001 - 4-Contact Relay Module 115V AC/DC, 6A Rated

1114561001 - 4-Contact Relay Module 115V AC/DC, 6A Rated

SKU: 1114561001   Download PDF

Select a Variant:
  • 1114561001 - 4-Contact Relay Module 115V AC/DC, 6A Rated
Qty:
Now $215.00   Web pricing policy
BEFORE   $0.00 Now $215.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

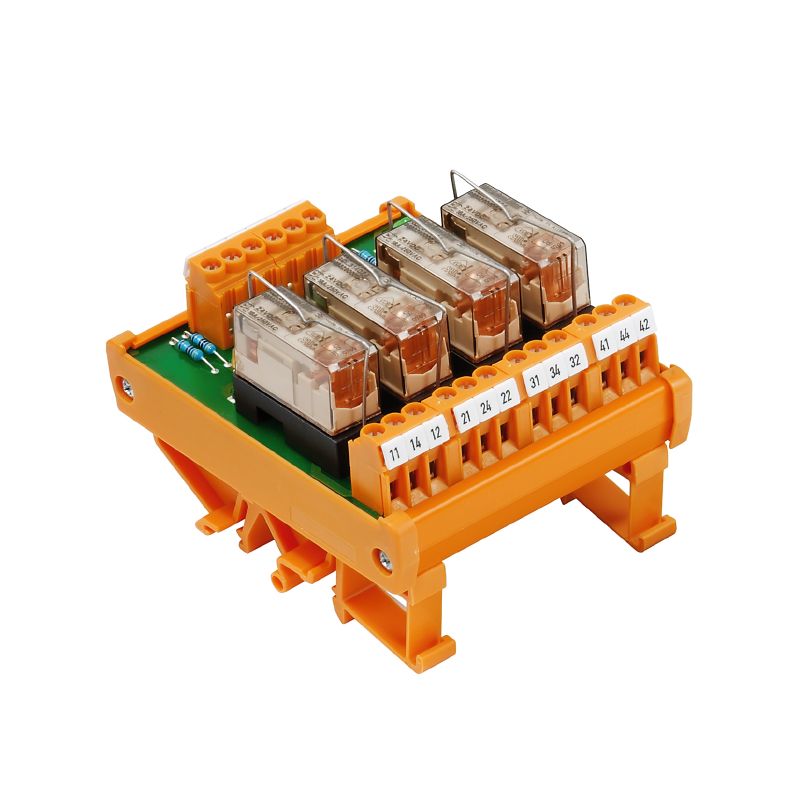

The RSM 4RS relay module features four changeover contacts crafted from AgNi 90/10 It functions efficiently at a rated control voltage of 115 V AC/DC and is capable of handling a continuous current of 6 A With convenient screw connections, this module is designed for reliable performance, although it does not come with a test button included.

Features and Benefits:

    •Screw connection type.

    •No test button provided.

    •AgNi 90/10 contact material.

Specifications:

 Depth (mm) 76
 Height (mm) 87
 Width (mm) 75
 Storage temperature -40 °C to 60 °C
 Operating temperature -25 °C to 50 °C
 Humidity 40 °C / 93% relative humidity, no condensation
 Rated voltage AC U N (input) 115 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 6 A
 Mechanical service life 30 x 10^6 switching cycles
 Power rating 0.6 VA
 RoHS Compliance Status Compliant
