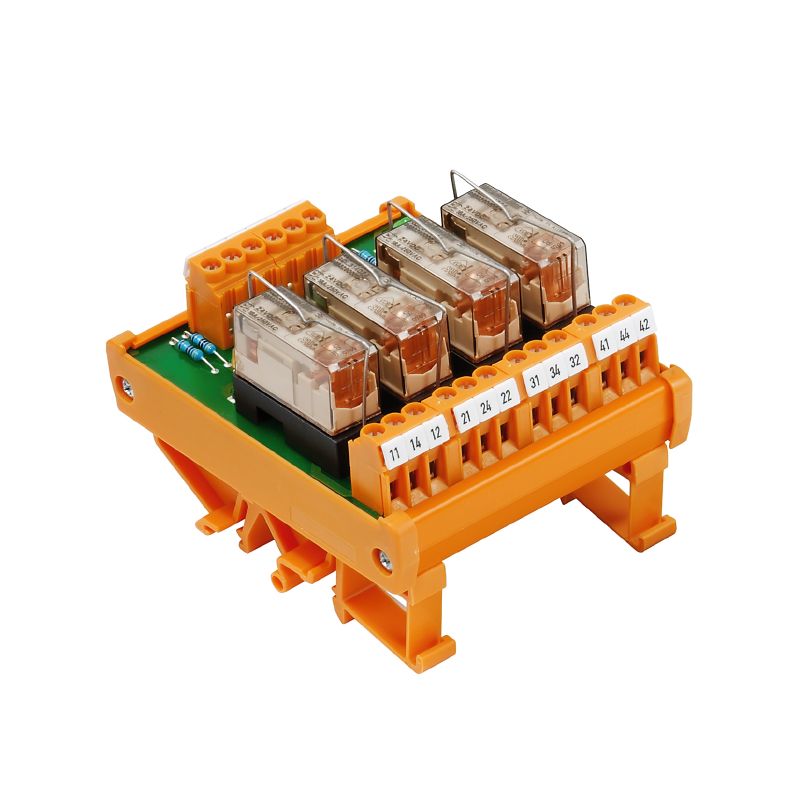

1112361001 - 4-Channel 24V DC Relay Module with CO Contacts

1112361001 - 4-Channel 24V DC Relay Module with CO Contacts

SKU: 1112361001 Download PDF

Variant:
  • 1112361001 - 4-Channel 24V DC Relay Module with CO Contacts
Now $115.60
BEFORE   $0.00 Now $115.60
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM Series relay module, engineered with four contacts featuring CO contacts made from AgNi 90/10 alloy This module operates on a control voltage of 24 V DC and can handle a continuous current of up to 6 A With screw connections for secure wiring, please note that this model does not come with a test button included Perfect for reliable circuit control in various applications.

Features and Benefits:

    •Compact design with small dimensions.

    •No test button available.

Specifications:

 Depth 76 mm
 Height 87 mm
 Width 75 mm
 Net weight 190 g
 Storage temperature -40 °C to 60 °C
 Operating temperature -25 °C to 50 °C
 Humidity 40 °C / 93 % relative humidity, non-condensing
 Rated voltage DC U N (input) 24 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 6 A
 Mechanical service life 30 x 10^6 switching cycles
 Switch-on delay < 8 ms
 Switch-off delay < 7 ms
 Power rating 0.45 W
 ROHS Compliance Status Compliant with exemption
 ROHS Exemption 7a, 7cI
 REACH SVHC Lead 7439-92-1
 SCIP 71d9bdc4-a0b5-4af0-93bd-2ad4e523fb14
 ETIM 6.0 EC001437
 ETIM 7.0 EC001437
 ETIM 8.0 EC001437
 ETIM 9.0 EC001437
 ETIM 10.0 EC001437
 ECLASS 9.0 27-37-16-01
 ECLASS 9.1 27-37-16-01
 ECLASS 10.0 27-37-16-01
 ECLASS 11.0 27-37-16-01
 ECLASS 12.0 27-37-16-01
 ECLASS 13.0 27-37-16-01
 ECLASS 14.0 27-37-16-01
 ECLASS 15.0 27-37-16-01
