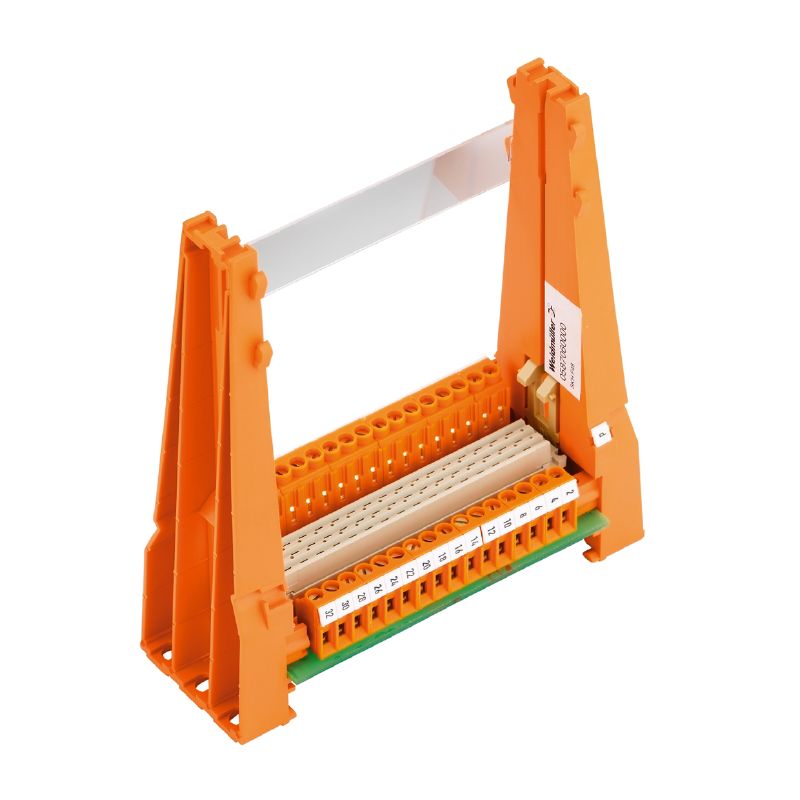

0587060000 - DIN 41612 Female Connector, 48 Poles, 144mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SKH F48 plug-in connector, designed specifically for female connections and compliant with the DIN 41612 standard This connector features 48 poles and has dimensions of 144 mm in depth, 56 mm in height, and 131 mm in width, weighing just 234 g It is built to operate efficiently within a temperature range of -40 to 60 °C for storage and 0 to 55 °C during operation Committed to environmental standards, this product is fully RoHS compliant, and it meets REACH SVHC requirements by containing no substances exceeding the specified weight percentage.

Features and Benefits:

•Designed for 19" racks with a board layout of 100x160 mm.

•Compatible with LP2N 5.08mm connection on the field side.

•Supports a maximum clamping range of 6 mm².

•Screw connection type ensures reliability.

•Rated for voltage of 125V AC / 150V DC with a surge voltage category II.

Specifications:
