0586761001 - 32D Plug-In Connector, 144mm Depth, DIN 41612

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

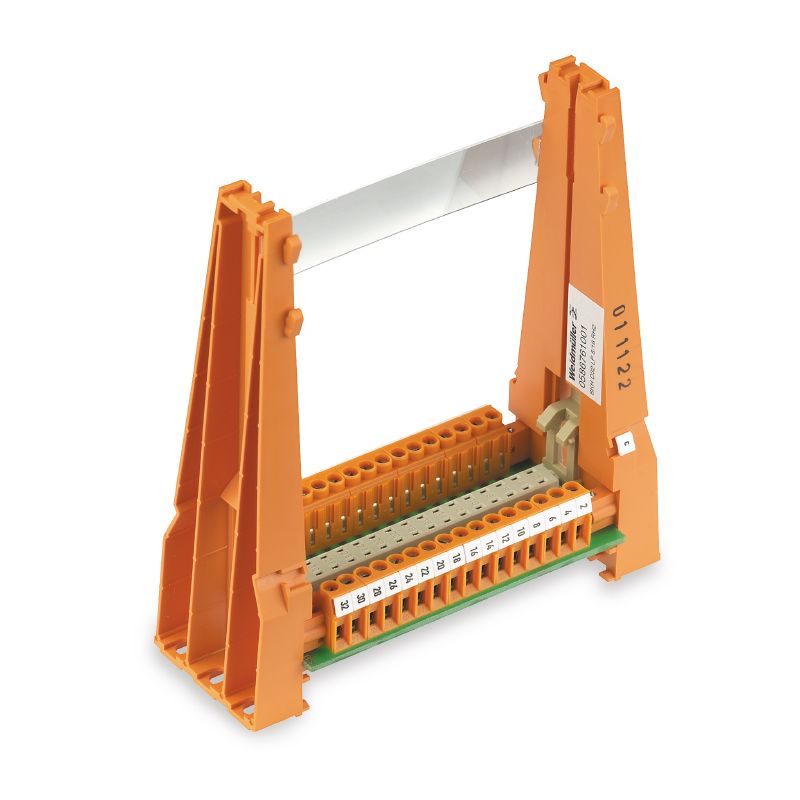

Introducing the SKH D32 LP 5/16 RH2 plug-in connector, engineered to meet DIN 41612 female specifications with a 32D interface This robust connector measures 144 mm in depth, 51 mm in height, and 131 mm in width, ensuring compatibility with standard setups It adheres to RoHS guidelines, making it a responsible choice for your projects With a temperature operation range of 0 to 55 °C, it is rated for 250 V UC and supports a maximum current of 4 A per connection.

Accommodating wire sizes between 05 to 6 mm², this connector is ideal for 19-inch rack installations and offers versatile connection options for both control and field applications.

Features and Benefits:

•Designed for 19-inch racks.

•Complies with RoHS without exemption.

•Can connect wires with different cross-sections.

•Plug-in connector for easy installation.

Specifications:
