0224561001 - Durable 50-Pole Plug-In Connector, IEC & RoHS Compliant

0224561001 - Durable 50-Pole Plug-In Connector, IEC & RoHS Compliant

SKU: SKU: 0224561001   Download PDF

Select a Variant:
  • 0224561001 - Durable 50-Pole Plug-In Connector, IEC & RoHS Compliant
Qty:
Regular price Now $87.49   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $87.49 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the RS F50 LP2N 5/50 plug-in connector, expertly designed for high durability and reliability This 50-pole connection utilizes a screw mechanism and meets the IEC60603-13 and DIN41651 standards, ensuring robust performance With compliance to RoHS regulations and certification under UL File Number E141197, this connector is an excellent choice for demanding applications.

Features and Benefits:

    •UL certified.

    •RoHS compliant without exemption.

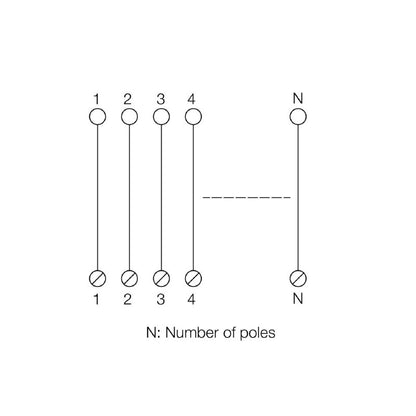

    •50-pole connection.

Specifications:

 Depth 70 mm
 Height 87 mm
 Width 145 mm
 Storage temperature -40...60 °C
 Operating temperature 0...55 °C
 Rated current I N 1 A
 Rated current I max 1 A
 Rated voltage U N ≤ 60 V AC / 75 V DC
 Rated insulation voltage 100 V
 Surge voltage category II
 Pollution severity level 2
 Clamping range, max. 6 mm²
 Clamping range, min. 0.5 mm²
 Tightening torque, max. 0.6 Nm
 Tightening torque, min. 0.5 Nm
 Type of connection Screw connection
