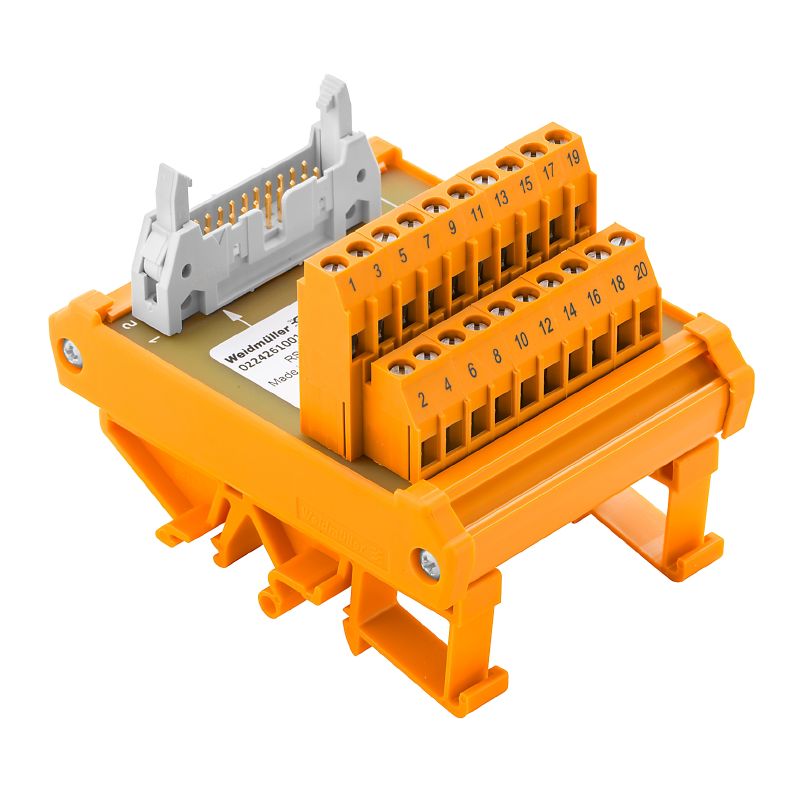

0224261001 - 20-Pole Screw Connector Compliant with IEC60603-13 Standards

SKU: SKU: 0224261001 Download PDF

Variant:

0224261001 - 20-Pole Screw Connector Compliant with IEC60603-13 Standards

Now $43.52

~~BEFORE $0.00~~ Now $43.52

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RS F20 LP2N 5/20, a robust plug-in connector crafted in accordance with IEC60603-13 and DIN41651 standards This interface boasts 20 poles and is equipped with a dependable screw connection, ensuring secure and efficient connectivity for your electronic applications.

Features and Benefits:

•Compliant with RoHS without any exemptions.

•Net weight of 130 g.

•Storage temperature range from -40 to 60 °C.

•Operating temperature range from 0 to 55 °C.

Specifications:

Depth	70 mm
Height	87 mm
Width	65 mm
Rated current I N	1 A
Rated current I max	1 A
Rated voltage U N	≤ 60 V AC / 75 V DC
Insulation coordination (EN50178)	According to DIN EN 50178
Rated insulation voltage	100 V
Surge voltage category	II
Pollution severity level	2
Pulse voltage test (1,2/50μs)	0.8 kV
Tightening torque, max	0.6 Nm
Tightening torque, min	0.5 Nm
Type of connection	Screw connection
Clamping range, max	6 mm²
Clamping range, min	0.5 mm²
Stripping length	6 mm
Max. wire cross-section, AWG	AWG 12
Min. wire cross-section, AWG	AWG 26
