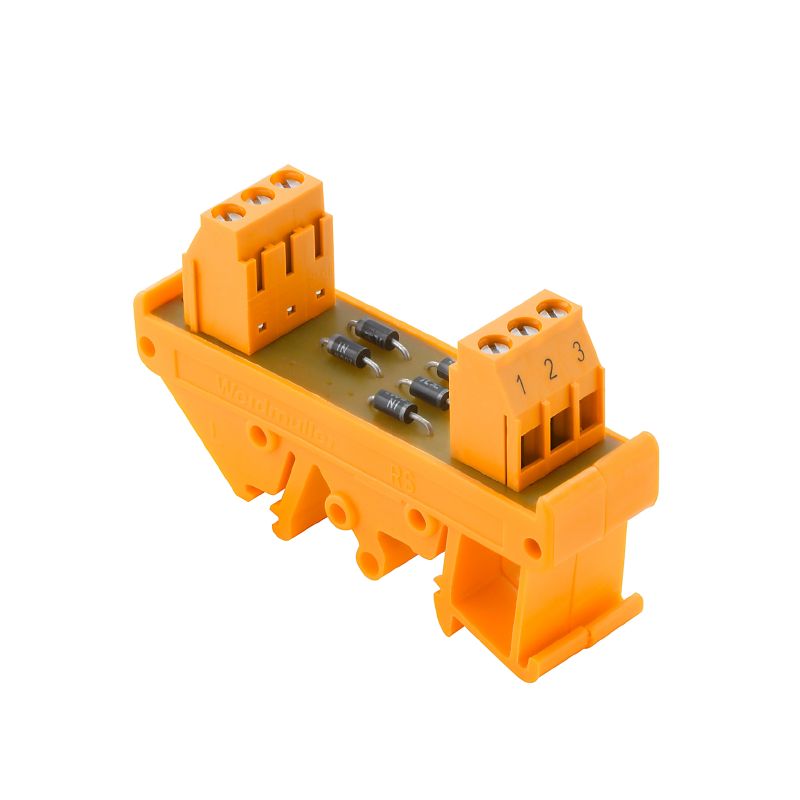

0180961001 - Versatile RSD A22 Interface, UL Compliant, -40 to 60°C Range

0180961001 - Versatile RSD A22 Interface, UL Compliant, -40 to 60°C Range

SKU: 0180961001 Download PDF

Variant:
  • 0180961001 - Versatile RSD A22 Interface, UL Compliant, -40 to 60°C Range
Now $58.37
BEFORE   $0.00 Now $58.37
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The RSD A22 LP/LP is engineered to comply with UL standards and is fully ROHS compliant With a common anode and secure screw connection, this interface offers flexibility for various applications It features a unique approval code, E141197, and is built to perform reliably in challenging conditions, functioning between -40 to 60 degrees Celsius during storage and from 0 to 55 degrees Celsius during operation, ensuring dependable performance across a broad temperature spectrum.

Features and Benefits:

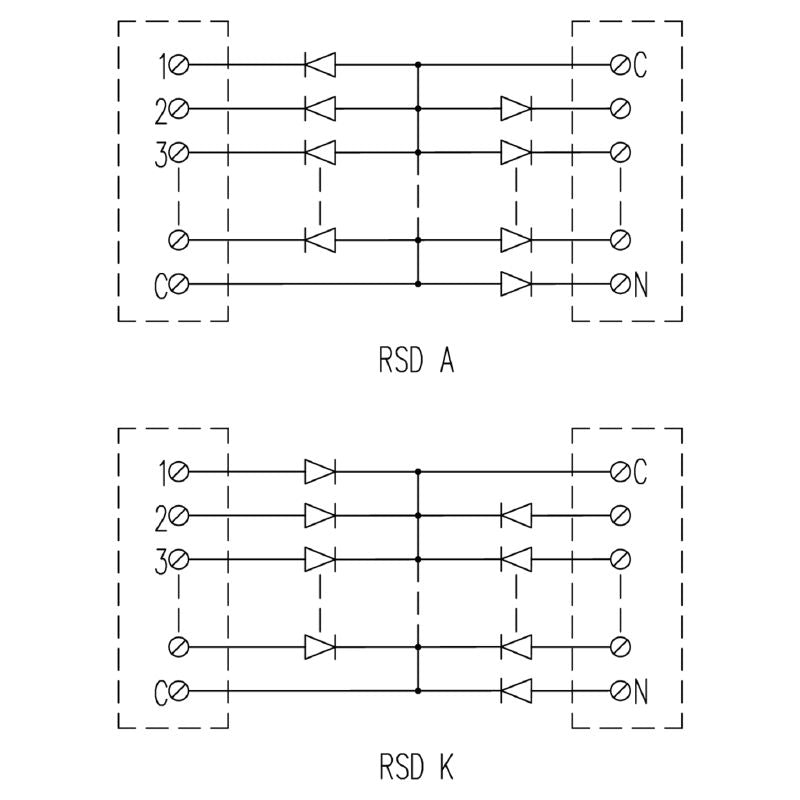

    •Configuration supports shared anode connection.

    •Diode type component, 1N4007.

    •Suitable for a range of wire cross-sections, from AWG 12 to AWG 26.

    •Insulation coordination according to DIN EN 50178.

    •Surge voltage category rated at II.

Specifications:

 Depth 42 mm
 Height 70 mm
 Width 65 mm
 Operating temperature UL, max 50 °C
 Operating temperature UL, min -25 °C
 Rated current I N 1 A
 Rated voltage U N 142 V
 Rated voltage 230 V
 Max. recurring peak voltage 1,000 V
 Rated insulation voltage 230 V
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 2 kV
 Insulation test voltage AC 0.35 kV
 Stripping length 6 mm
 Tightening torque, max 0.6 Nm
 Tightening torque, min 0.5 Nm
 Type of connection Screw connection
 Clamping range, max 6 mm²
 Clamping range, min 0.5 mm²
 Flexible with sleeve, max 2.5 mm²
 Flexible with sleeve, min 0.5 mm²
 Solid, max 6 mm²
 Solid, min 0.5 mm²
