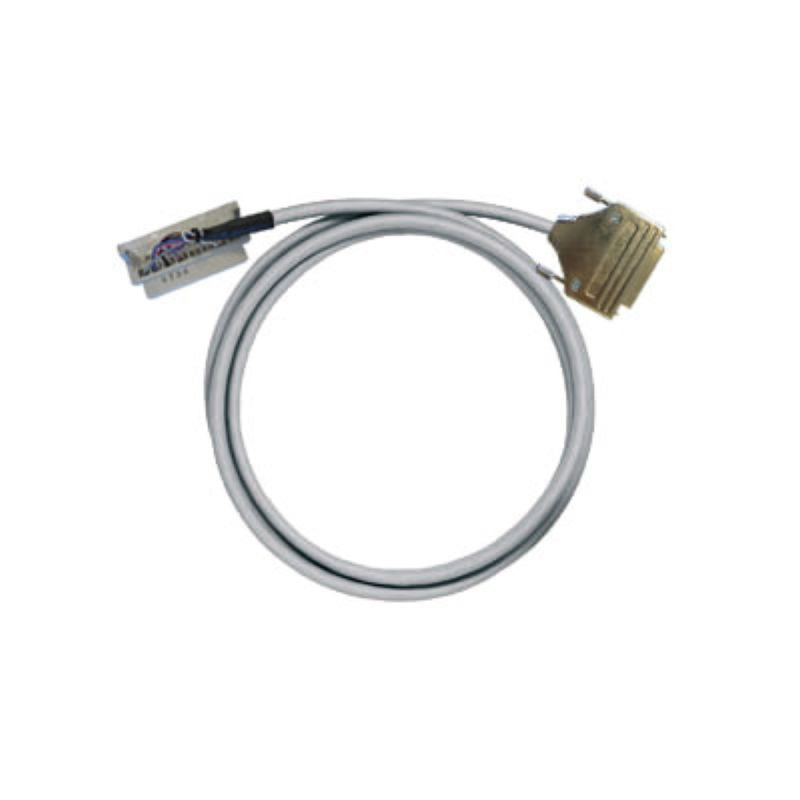

7789311010 - 1m LiYCY Cable with SCHNEIDER 15P Connector

Description:

Introducing the pre-assembled PAC-MICR-SD25-V0-1M cable, expertly designed for reliable performance With a wire cross-section of 025 mm², this LiYCY cable spans 1 meter in length It features a SCHNEIDER TSX BLZ H01 15P connector on one end and a SUB-D FEMALE 25P interface connector for seamless integration Ideal for analogue signal transmission, this cable has a weight of 3278 grams It operates efficiently within a temperature range of -10 to 50 °C and is safe to store at temperatures as low as -10 °C and up to 60 °C.

Additionally, this product adheres to RoHS regulations and is free from SVHC above the specified limits, ensuring environmental compliance.

Features and Benefits:

•Outer diameter of 10.15 ± 1 mm.

•Electrical capacity of 300 pF/m for wire/shield and wire/wires.

•High voltage test rating of 1 KV for 1 second.

•Maximum permissible current strength of 1 A per path.

•Rated voltage capability of ≤ 60 Vdc and ≤ 25 Vac.

•Resistance of ≤ 80 mΩ/m.

•Total current rating of up to 3 A.

•Manufactured from PVC material.

•Suitable for analogue signal transmission.

Specifications:
