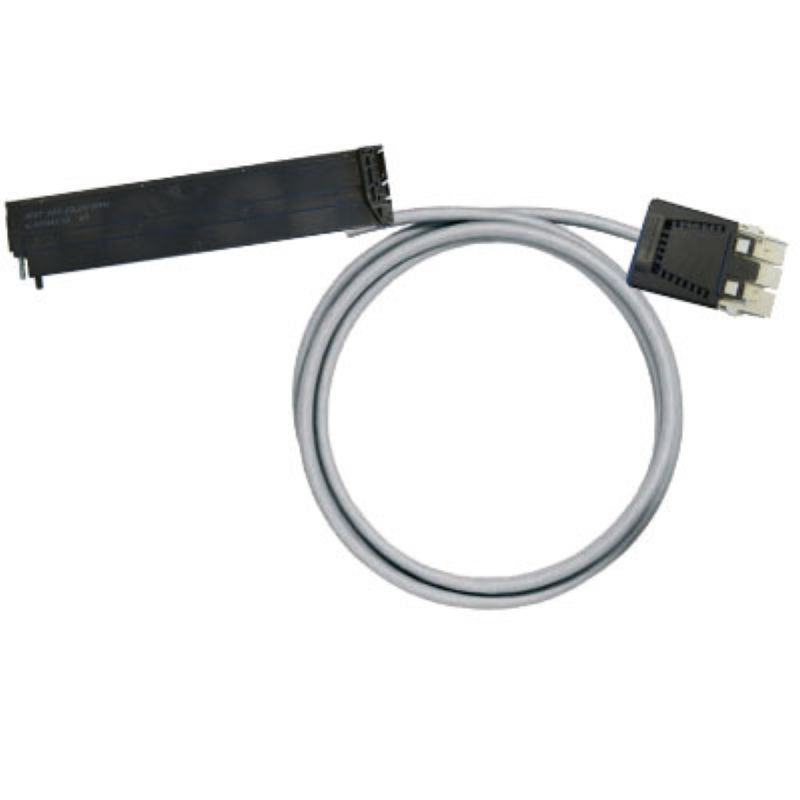

7789278030 - 3m Digital Signal Cable with 36-Pole Connector

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-S400-RV36-V2-3M, a pre-assembled cable crafted with LiYY wire, featuring a cross-sectional area of 025 mm² This cable meets ROHS standards and weighs 7046 grams, making it a reliable and eco-friendly choice It functions seamlessly in temperatures ranging from -10 to 50 degrees Celsius and can be stored in environments as low as -10 degrees and as high as 60 degrees Celsius Designed specifically for digital signal transmission, it boasts a 36-pole Siemens S7400 connector on the PLC side and includes an interface connector from WEIDMUELLER.

With an approximate outer diameter of 112 mm ± 1 mm, this cable offers excellent performance and versatility for various applications.

Features and Benefits:

•Compliant with RoHS requirements.

•Designed for digital signals.

•High voltage test rating of 1 KV for 1 second.

•Permissible current strength of 1 A per path.

•Rated for voltage up to 250 Vdc and 250 Vac.

Specifications:
