7789153010 - 1m Pre-assembled Digital Signal Cable with 0.25mm² Wire

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

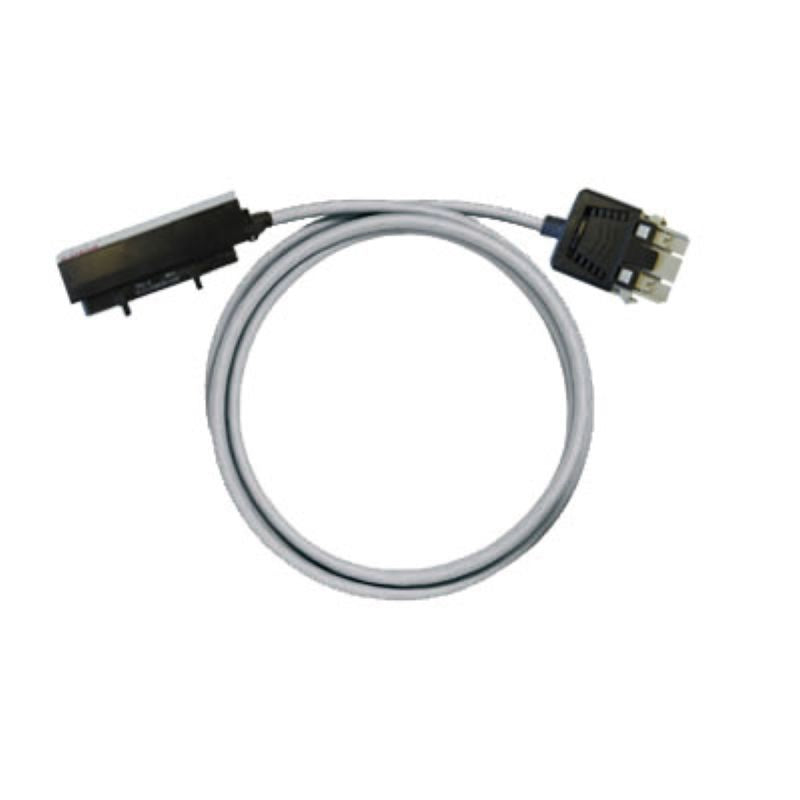

Introducing the pre-assembled cable identified by part number PAC-CTLX-RV24-V2-1M, designed for reliable connectivity This cable boasts a cross-sectional wire size of 025 mm² and spans a length of 1 meter, providing ample reach for your needs At one end, you'll find a ROCKWELL CONTROL LOGIX 1756-TBNH 20P connector, while the other end is outfitted with a WEIDMUELLER RSV 24P MALE connector The cable features an outer diameter of 9.

2 ± 1 mm, making it ideal for transmitting digital signals effectively.

Features and Benefits:

•Compliant with RoHS standards with an exemption.

•Operates effectively within a temperature range of -10 to 50 °C.

•Net weight of 292.1 g.

•Electrical characteristics include a high voltage test of 1 KV for 1 second.

•Rated for voltages up to 250 Vdc and 250 Vac.

•Maximum permissible current strength per path is 1 A.

•Total maximum current capacity is 3 A.

Specifications:
