7789106030 - 3m PVC Cable with 36-Pole WEIDMUELLER Connector

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

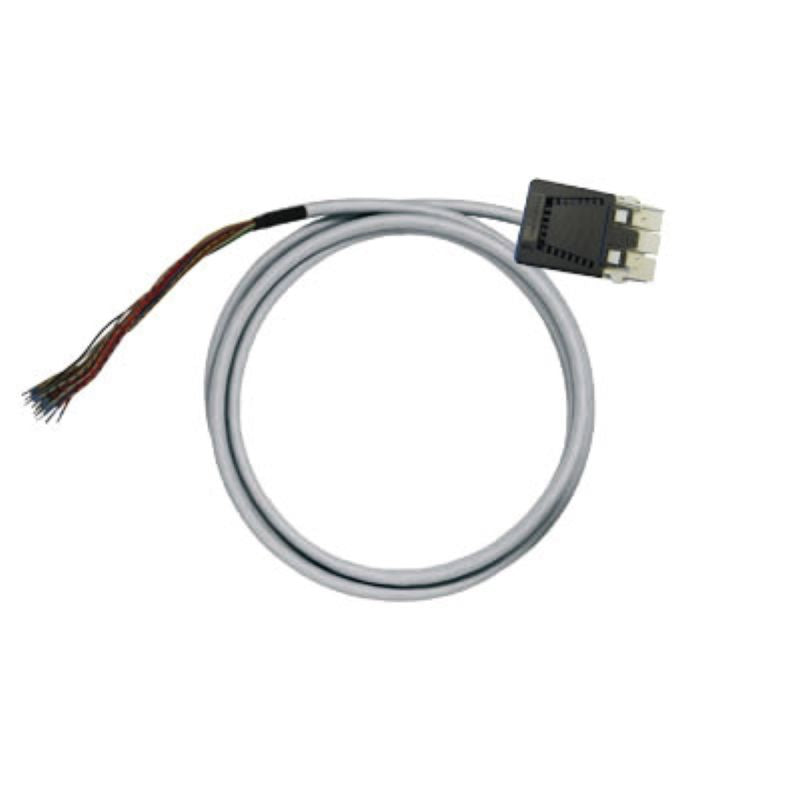

This reliable 3-meter pre-assembled cable, model PAC-UNIV-RV36-F-3M, is made from durable PVC material and features a LiYY construction with a cross-sectional area of 025 mm² It is optimized for digital signal transmission, making it an excellent choice for various applications One end is fitted with a 36-pole WEIDMUELLER RSV 36P MALE connector, while the cable itself has an outer diameter of approximately 11.

2 ± 1 mm, providing flexibility and ease of use in your setup.

Features and Benefits:

•Compliant with RoHS regulations.

•No SVHC content exceeding 0.1 wt%.

•Capable of withstanding a high voltage test of 1 KV for 1 second.

•Max current strength per path is 1 A.

•Rated voltage of up to 250 Vdc and 250 Vac.

•Suitable for digital signal transmission.

Specifications:
