2269800000 - Quick-Mount 4-6mm² Shield Connection Device (Pack of 10)
2269800000 - Quick-Mount 4-6mm² Shield Connection Device (Pack of 10)
SKU: SKU: 2269800000 Download PDF
- 2269800000 - Quick-Mount 4-6mm² Shield Connection Device (Pack of 10)
- 2269800000 - Quick-Mount 4-6mm² Shield Connection Device (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

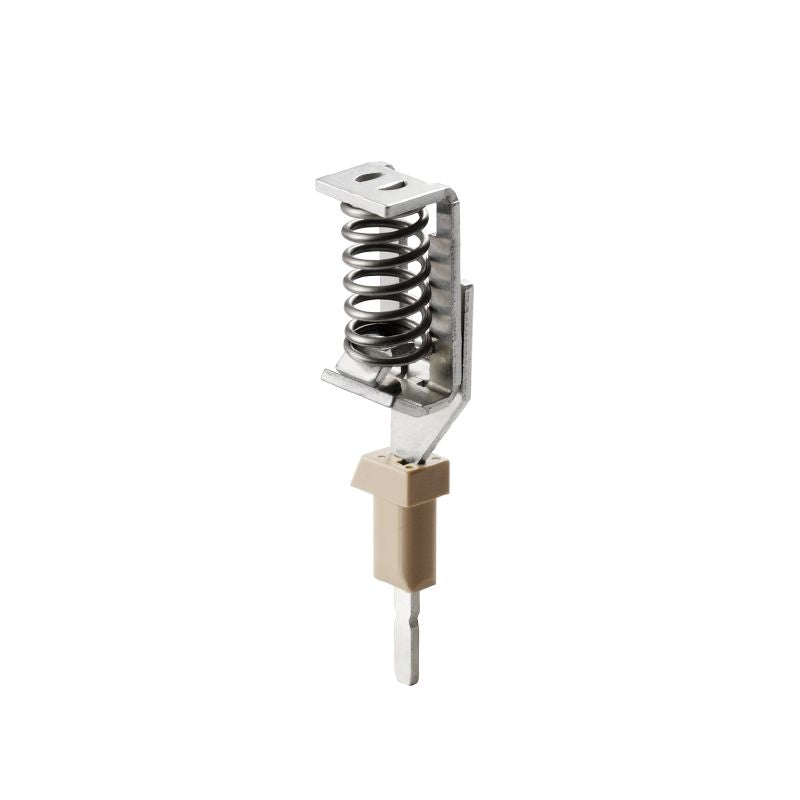

Introducing the KLBUE 4-6 Z/1, a premium solution for shield connections that meets RoHS standards without needing any exemptions This product is engineered for straightforward installation with a convenient direct mounting process and features a reliable snap-on fixation method It is compatible with stranded connections, accommodating cable diameters ranging from 4 to 6 mm and suitable for connection cross-sections between 4 and 6 mm².
The thoughtfully designed clamping yoke ensures quick and dependable connections, making it an excellent choice for your connectivity needs.
Features and Benefits:
•RoHS compliant without exemptions.
•Direct mounting installation.
•Snap-on type of fixing.
•Suitable for cables with diameters ranging from 4 mm to 6 mm.
Specifications:
| Depth | 8.5 mm |
| Height | 45.2 mm |
| Width | 8.9 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Cable diameter, max. | 6 mm |
| Cable diameter, min. | 4 mm |
| Connection cross-section, stranded, max. | 6 mm² |
| Connection cross-section, stranded, min. | 4 mm² |
| Stripping length | 8.5 mm |
| Type of connection | Spring connection |
| Pitch in mm (P) | 20 mm |
| Rated cross-section | 6 mm² |
| ETIM 6.0 | EC002020 |
| ECLASS 9.0 | 27-14-11-50 |
