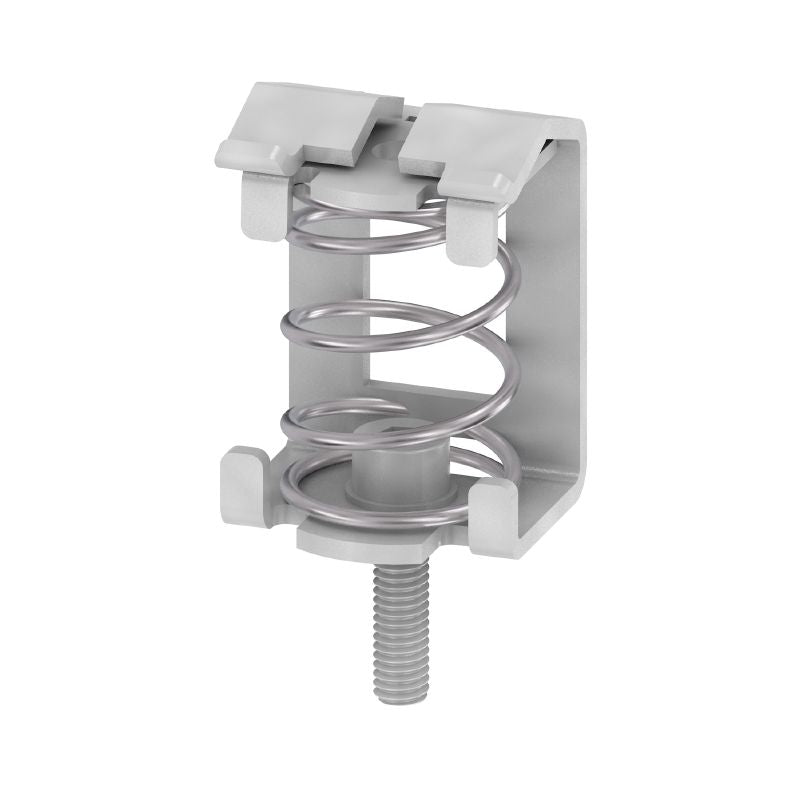

1712311002 - Steel Clamping Yoke M4X16 for -60 to 130°C Conditions (Pack of 10)
1712311002 - Steel Clamping Yoke M4X16 for -60 to 130°C Conditions (Pack of 10)
SKU: SKU: 1712311002 Download PDF
- 1712311002 - Steel Clamping Yoke M4X16 for -60 to 130°C Conditions (Pack of 10)
- 1712311002 - Steel Clamping Yoke M4X16 for -60 to 130°C Conditions (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the KLBUE 4-135 SC M4X16, a robust component engineered for reliable connections Its sturdy steel clamping yoke guarantees stability, while it operates effectively across a wide temperature range of -60 °C to 130 °C, making it suitable for various applications This product meets RoHS standards without any exemptions and is free from any SVHC in amounts exceeding 01 weight percent, ensuring a safe choice for environmentally-conscious users.
Features and Benefits:
•Made from durable steel material.
•Color is silver.
•Designed for shield connection.
•Direct mounting functionality.
•Spring connection type.
Specifications:
| Depth | 31.45 mm |
| Height | 22 mm |
| Width | 20.1 mm |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Cable diameter, max. | 13.5 mm |
| Cable diameter, min. | 4 mm |
| Connection cross-section, stranded, max. | 13.5 mm² |
| Connection cross-section, stranded, min. | 4 mm² |
| Stripping length | 22 mm |
| Rated cross-section | 10 mm² |
| ETIM classifications | EC002020 |
| ECLASS classifications | 27-14-11-50 |
