Description:

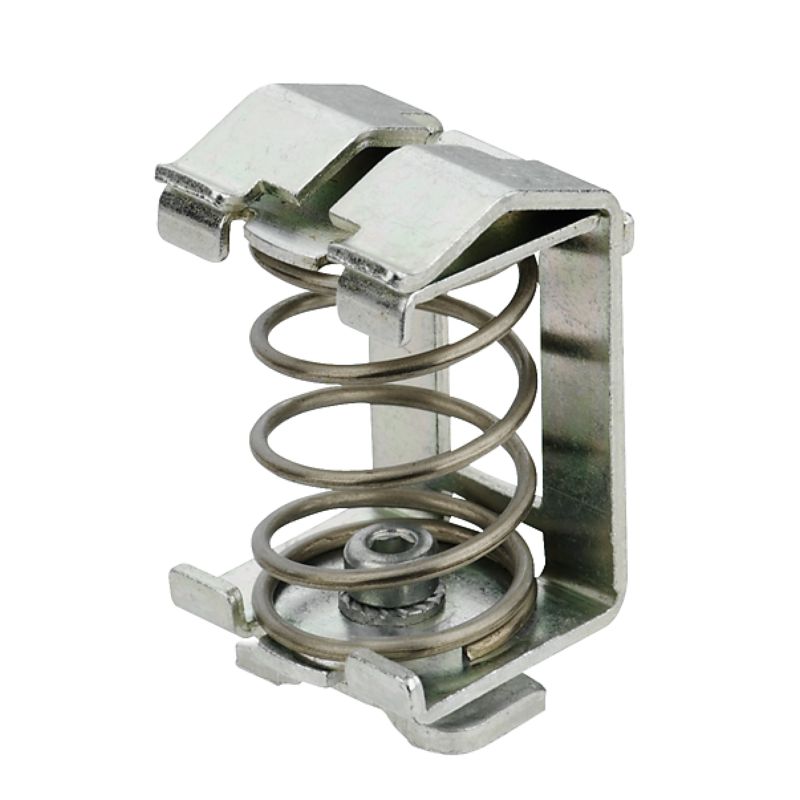

Introducing the KLBUE 10-20 CPF, a robust clamping yoke crafted from durable steel This product adheres to RoHS regulations and is equipped with specific installation and operational specifications It can withstand a broad temperature range, making it ideal for continuous use Designed for easy direct mounting, it eliminates the need for an end cover plate Complying with all relevant environmental standards, this model is an efficient choice for shield connection systems.
Features and Benefits:
•RoHS Compliant without exemption.
•Explosion-tested version.
•Direct mounting installation.
•For shield connection systems.
Specifications:
| Depth | 39.5 mm |
| Height | 26 mm |
| Width | 24 mm |
| Mounting dimension - width | 22.5 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Basic material | Steel |
| Cable diameter, max. | 20 mm |
| Cable diameter, min. | 10 mm |
| Connection cross-section, stranded, max. | 20 mm² |
| Connection cross-section, stranded, min. | 10 mm² |
| Stripping length | 26 mm |
| Type of connection | Spring connection |
| Rated cross-section | 20 mm² |
| Pitch in mm (P) | 30 mm |
| Mounting rail | TS 27 |
