1252530000 - Clamping Yoke for Shield Connections, 26mm Depth, ROHS Compliant (Pack of 10)
1252530000 - Clamping Yoke for Shield Connections, 26mm Depth, ROHS Compliant (Pack of 10)
SKU: SKU: 1252530000 Download PDF
- 1252530000 - Clamping Yoke for Shield Connections, 26mm Depth, ROHS Compliant (Pack of 10)
- 1252530000 - Clamping Yoke for Shield Connections, 26mm Depth, ROHS Compliant (Pack of 10)
Couldn't load pickup availability
Description:

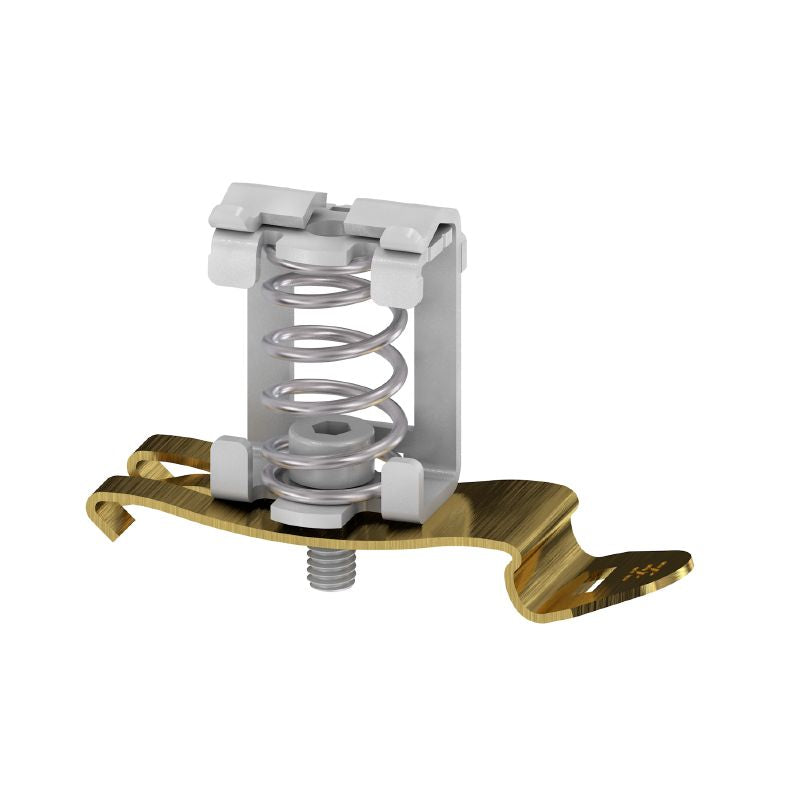

Introducing the KLBUE 3-8 FM4 clamping yoke, expertly crafted for shield connections Fully compliant with ROHS standards, this reliable device boasts a compact size, measuring 26 mm deep, 50 mm tall, and 145 mm wide, with a lightweight design at just 15136 g It operates effectively within a temperature range of -60 °C to 130 °C Suitable for cable diameters between 3 mm and 8 mm, it also supports stranded conductor cross-sections from 3 mm² to 8 mm², making it a versatile choice for various applications.
Features and Benefits:
•Compliant with ROHS standards.
•TS 35 mounting rail compatibility.
•Snap-on type of mounting.
•Spring connection type.
Specifications:
| Depth (mm) | 26 |
| Height (mm) | 50 |
| Width (mm) | 14.5 |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Cable diameter, max. | 8 mm |
| Cable diameter, min. | 3 mm |
| Connection cross-section, stranded, max. | 8 mm² |
| Connection cross-section, stranded, min. | 3 mm² |
| Stripping length | 18 mm |
| Rated cross-section | 8 mm² |
| Explosion-tested version | No |
| End cover plate required | No |
| UL 94 flammability rating | None |
| ETIM 6.0 | EC002020 |
| ECLASS 9.0 | 27-14-11-50 |
