1749151001 - 20mm Steel Clamping Yoke with Snap-On Fixation (Pack of 10)
1749151001 - 20mm Steel Clamping Yoke with Snap-On Fixation (Pack of 10)
SKU: SKU: 1749151001 Download PDF
- 1749151001 - 20mm Steel Clamping Yoke with Snap-On Fixation (Pack of 10)
- 1749151001 - 20mm Steel Clamping Yoke with Snap-On Fixation (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

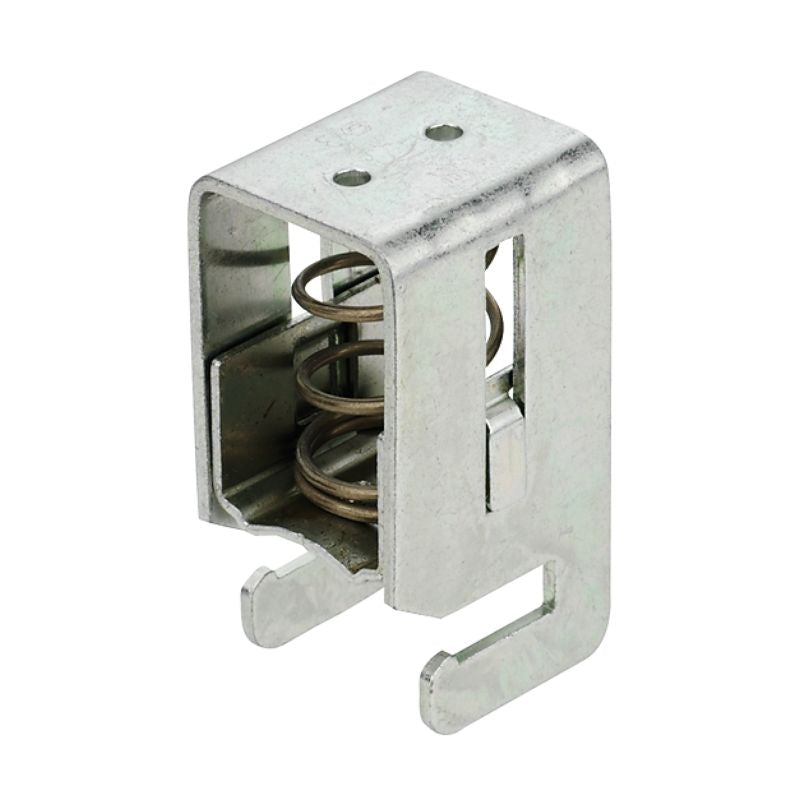

Introducing the KLBUE CO 3 clamping yoke, expertly crafted from high-quality steel and compliant with RoHS standards It accommodates cables with diameters ranging from 10 mm to a maximum of 20 mm This versatile yoke is designed for straightforward direct mounting onto a busbar, featuring a reliable snap-on fixation along with a spring connection that ensures dependable electrical contact Built for a variety of applications, its sturdy design promises exceptional performance and longevity.
Features and Benefits:
•Compliant with RoHS without exemptions.
•Direct mounting on busbars.
•Spring connection for secure clamping.
•Designed for shield connections.
Specifications:
| Depth | 45 mm |
| Height | 25 mm |
| Width | 24 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Basic material | Steel |
| Colour | silver |
| Cable diameter, max. | 20 mm |
| Cable diameter, min. | 10 mm |
| Connection cross-section, stranded, max. | 20 mm² |
| Connection cross-section, stranded, min. | 10 mm² |
| Stripping length | 25 mm |
| Pitch in mm (P) | 25 mm |
| Rated cross-section | 20 mm² |
| Cradle to gate Carbon Footprint | 0.142 kg CO2 eq. |
