1068700000 - PA 66 GF 30 Rail Support, 57mm Depth, 110mm Height (Pack of 10)
1068700000 - PA 66 GF 30 Rail Support, 57mm Depth, 110mm Height (Pack of 10)
SKU: SKU: 1068700000 Download PDF
- 1068700000 - PA 66 GF 30 Rail Support, 57mm Depth, 110mm Height (Pack of 10)
- 1068700000 - PA 66 GF 30 Rail Support, 57mm Depth, 110mm Height (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

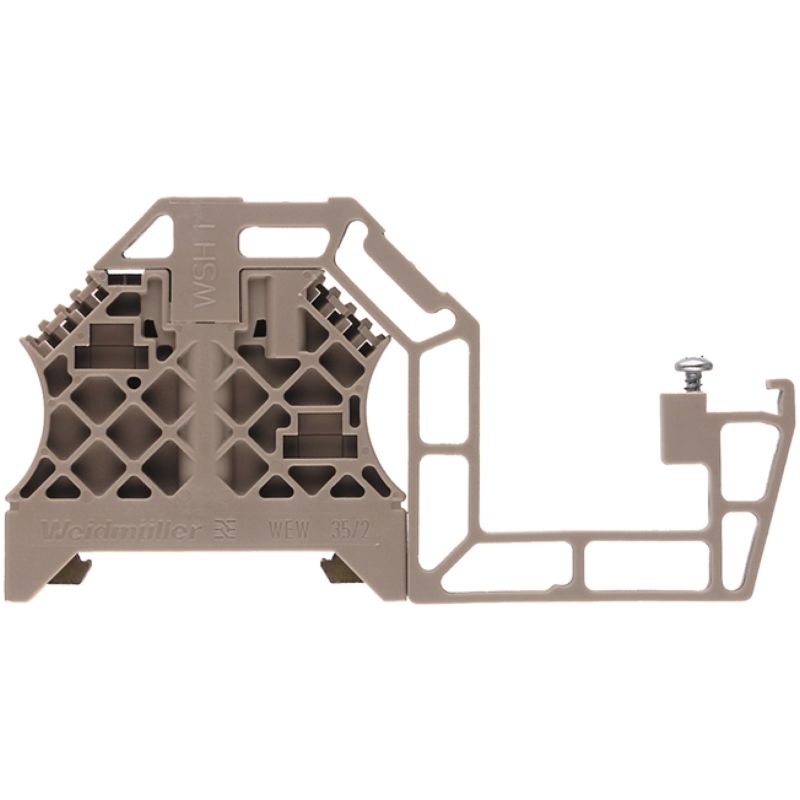

Introducing the WSH 1, a premium rail support accessory crafted from durable PA 66 GF 30 material With dimensions of 57 mm in depth, 110 mm in height, and 8 mm in width, this lightweight product weighs just 26175 grams It operates effectively in temperatures ranging from -50 °C to 65 °C and can be stored safely between -25 °C and 55 °C The WSH 1 meets RoHS compliance standards and is free from any substances of very high concern (SVHC) above 0.
1 wt% Designed for easy direct mounting, it requires screw installation and is compatible with TS 35 mounting rails, featuring an 8 mm pitch and a 66 mm offset.
Features and Benefits:
•Compliant with RoHS without exemption.
•Tested for environmental standards.
•Suitable for mounting rail applications.
Specifications:
| Depth | 57 mm |
| Height | 110 mm |
| Width | 8 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Operating temperature | -50 °C...65 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| Basic material | PA 66 GF 30 |
| UL 94 flammability rating | HB |
| Mounting rail | TS 35 |
| Number of poles | 1 |
| ETIM 6.0 | EC001166 |
| ECLASS 9.0 | 27-40-06-07 |
