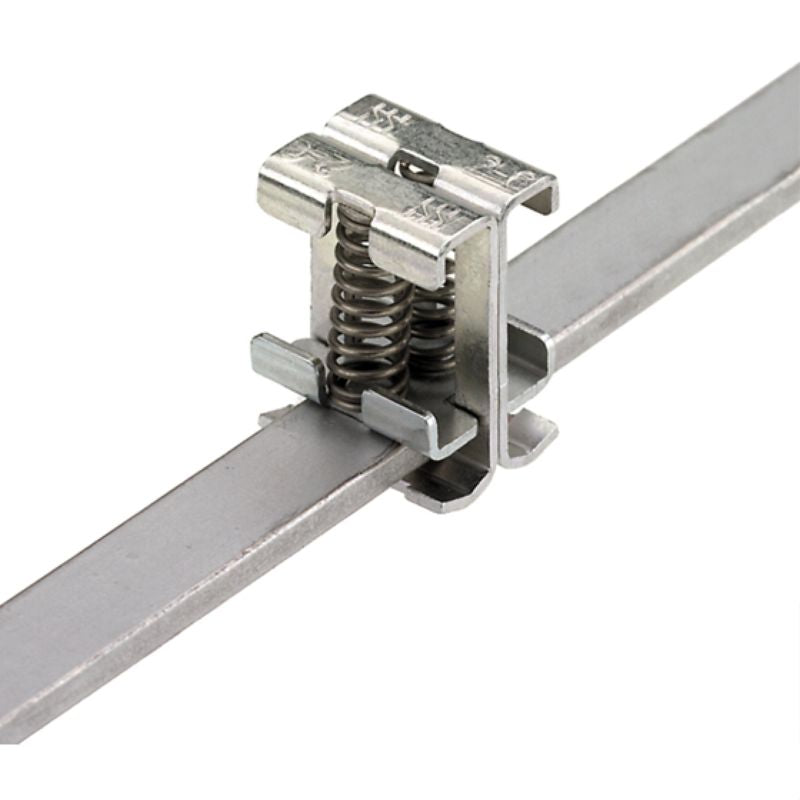

1675350000 - Steel Clamping Yoke for Shield Connections, -60°C to 130°C (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the KLBUE 2X2-6, an expertly engineered component featuring a robust steel clamping yoke, ideal for shielded connections This unit operates efficiently in temperatures ranging from -60 °C to 130 °C and complies with RoHS standards, ensuring safety and environmental compatibility Its innovative snap-on fixing mechanism allows for easy installation, and it has undergone rigorous explosion testing for added reliability.

Designed for stranded conductors, this connector accommodates a cross-section between 2 mm² and 6 mm², with a stripping length of 18 mm for optimal functionality.

Features and Benefits:

•Explosion-tested version.

•Snap-on type of fixing.

•For a shield connection.

•Compliant with RoHS without exemption.

•No end cover plate required.

•Suitable for busbar mounting and connections.
