Description:

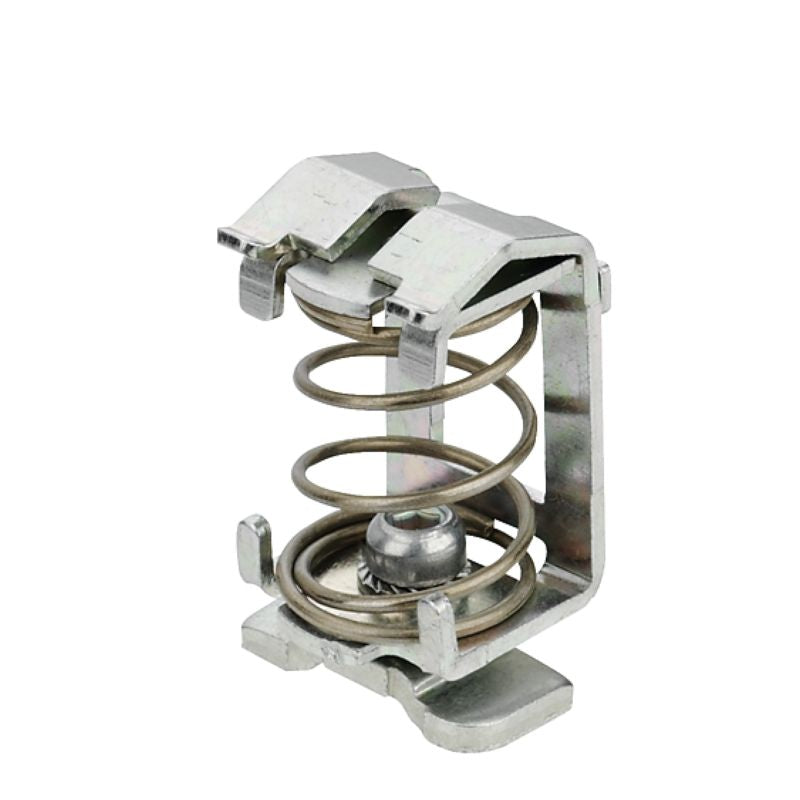

Experience the reliability of the KLBUE 4-135 CPF clamping yoke, expertly crafted from sturdy steel This ROHS compliant accessory is perfect for applications that demand secure fastening connections It guarantees dependable performance while boasting impressive durability Designed for easy installation on TS 27 mounting rails, this yoke provides robust support and stability for various operational environments.
Features and Benefits:
•Clamping yoke constructed from steel.
•Explosion-tested version available.
•Designed for direct mounting.
•No end cover plate required.
•Spring connection type.
Specifications:
| Depth: | 31.5 mm |
| Height: | 22 mm |
| Width: | 20.5 mm |
| Storage temperature: | -25 °C to 55 °C |
| Ambient temperature: | -5 °C to 40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Max cable diameter: | 13.5 mm |
| Min cable diameter: | 4 mm |
| Max connection cross-section, stranded: | 13.5 mm² |
| Min connection cross-section, stranded: | 4 mm² |
| Stripping length: | 22 mm |
| Rated cross-section: | 10 mm² |
| Pitch in mm (P): | 20 mm |
| GTIN (EAN): | 4032248044429 |
