1802690000 - Galvanized Steel Terminal Rail, 2000mm Wide, Easy Installation (Pack of 2)
1802690000 - Galvanized Steel Terminal Rail, 2000mm Wide, Easy Installation (Pack of 2)
SKU: SKU: 1802690000 Download PDF
- 1802690000 - Galvanized Steel Terminal Rail, 2000mm Wide, Easy Installation (Pack of 2)
- 1802690000 - Galvanized Steel Terminal Rail, 2000mm Wide, Easy Installation (Pack of 2)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

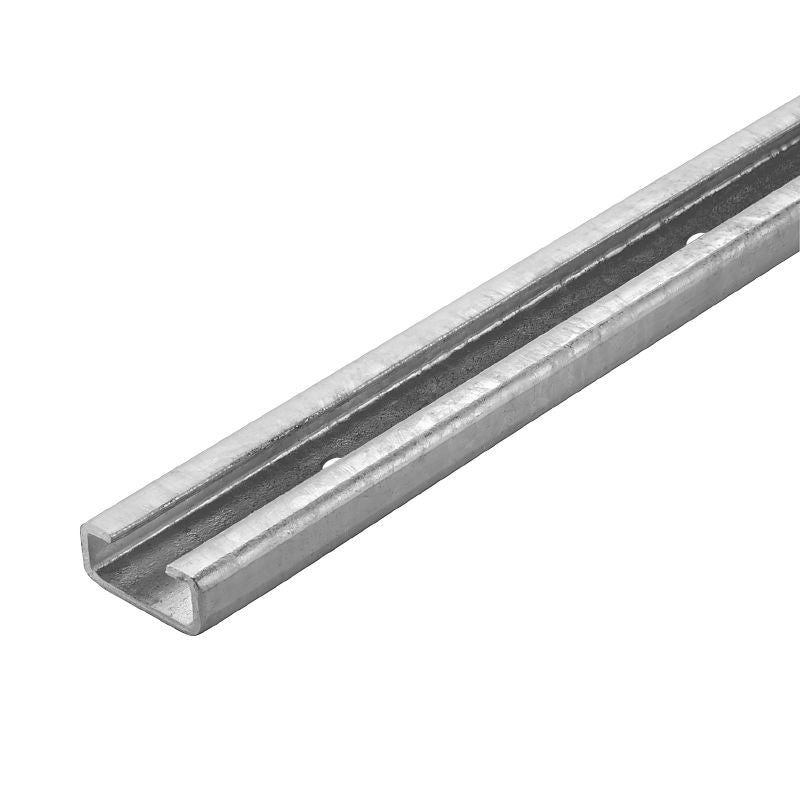

Experience durability with our terminal rail made from galvanized steel, measuring 2000 mm in width, 27 mm in height, and 125 mm in depth This product guarantees safety with ROHS compliance and contains no SVHC materials exceeding 01 wt% For added convenience, it features a pre-punched design that allows for direct mounting, making installation straightforward and hassle-free.
Features and Benefits:
•Direct mounting.
•Pre-punched mounting rail for easy installation.
•Surface finish is galvanized.
Specifications:

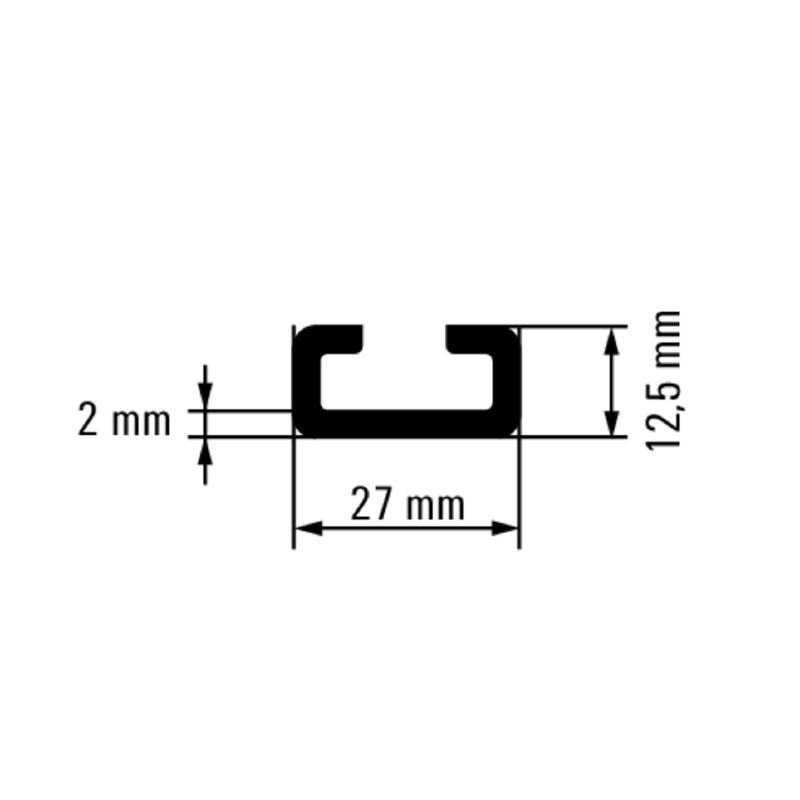

| Depth | 12.5 mm |
| Height | 27 mm |
| Width | 2000 mm |
| Net weight | 50 g |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Basic material | Steel |
| Thickness | 2 mm |
| Standards | DIN EN 60715 |
| Slit gap (min) | 11 mm |
| Slit gap (nominal) | 11 mm |
| Slit gap (max) | 11 mm |
| Slit length | 9 mm |
| Slit length (min) | 25 mm |
| Slit length (nominal) | 25 mm |
| Slit length (max) | 25 mm |
| Slit width | 9 mm |
| Slit width (min) | 5.2 mm |
| Slit width (nominal) | 5.2 mm |
| Slit width (max) | 5.2 mm |

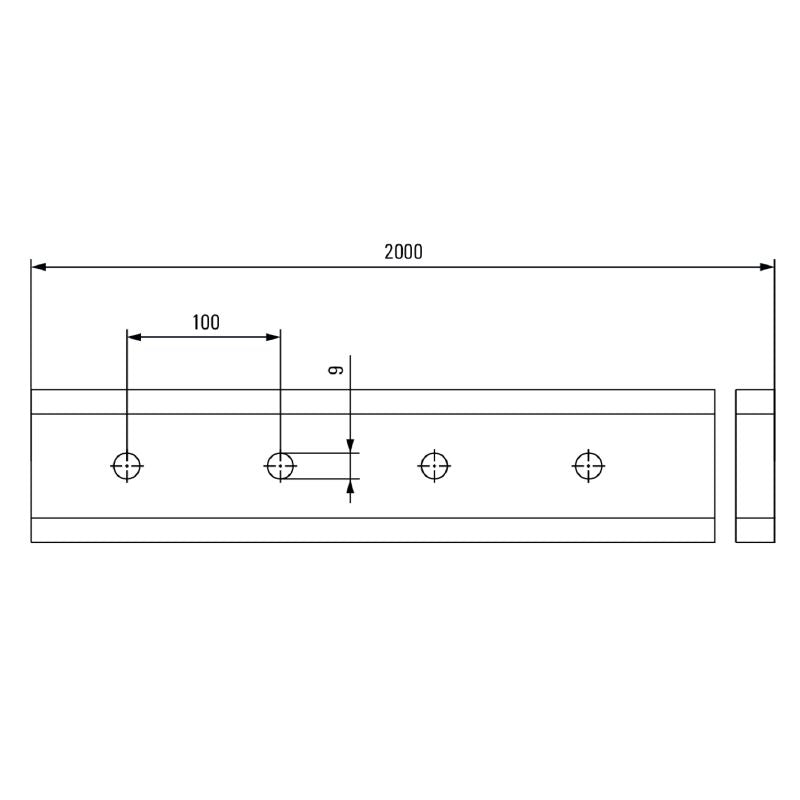

| Spacing of holes, centre-to-centre | 100 mm |
| RoHS Compliance Status | Compliant without exemption |
| ETIM 6.0 | EC001285 |
| ETIM 7.0 | EC001285 |
| ETIM 8.0 | EC001285 |
| ETIM 9.0 | EC001285 |
| ETIM 10.0 | EC001285 |
| ECLASS 9.0 | 27-40-06-02 |
| ECLASS 9.1 | 27-40-06-02 |
| ECLASS 10.0 | 27-40-06-02 |
| ECLASS 11.0 | 27-40-06-02 |
| ECLASS 12.0 | 27-40-06-02 |
| ECLASS 13.0 | 27-40-06-02 |
| ECLASS 14.0 | 27-40-06-02 |
| ECLASS 15.0 | 27-40-06-02 |
