1755081001 - Steel Clamping Yoke for Busbar Connections, -60°C to 130°C (Pack of 10)
1755081001 - Steel Clamping Yoke for Busbar Connections, -60°C to 130°C (Pack of 10)
SKU: SKU: 1755081001 Download PDF
- 1755081001 - Steel Clamping Yoke for Busbar Connections, -60°C to 130°C (Pack of 10)
- 1755081001 - Steel Clamping Yoke for Busbar Connections, -60°C to 130°C (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

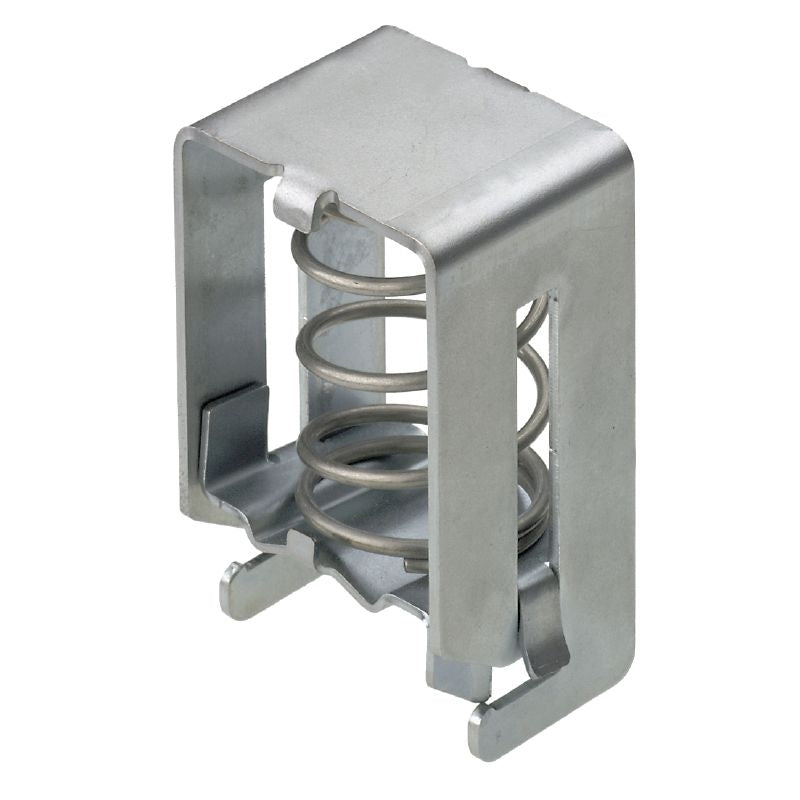

Introducing the KLBUE CO 5, a robust steel clamping yoke engineered for specific applications This product meets stringent RoHS standards and operates efficiently without any exemptions Tailored for busbar connections, it comes with detailed specifications addressing temperature tolerance and connection types With a carbon footprint of just 0296 kg CO2 equivalent, it demonstrates a commitment to sustainability.
The KLBUE CO 5 operates seamlessly within a temperature spectrum of -60 °C to 130 °C, offering versatility for various environments.
Features and Benefits:
•Compliant with RoHS regulations.
•No end cover plate required for installation.
•Installation advice indicates suitability for busbar applications.
•Snap-on type fixing for ease of use.
•Rated cross-section of 35 mm².
•Suitable for busbar mounting and connections.
Specifications:
| Depth | 64.5 mm |
| Height | 35.5 mm |
| Width | 42.7 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Basic material | Steel |
| Cable diameter, max. | 37 mm |
| Cable diameter, min. | 20 mm |
| Connection cross-section, stranded, max. | 37 mm² |
| Connection cross-section, stranded, min. | 20 mm² |
| Stripping length | 32 mm |
| Type of connection | Spring connection |
| Pitch in mm (P) | 32 mm |
