1715970000 - Dark Beige 8mm Component for TS 35 Mounting Rails (Pack of 10)
1715970000 - Dark Beige 8mm Component for TS 35 Mounting Rails (Pack of 10)
SKU: SKU: 1715970000 Download PDF
- 1715970000 - Dark Beige 8mm Component for TS 35 Mounting Rails (Pack of 10)
- 1715970000 - Dark Beige 8mm Component for TS 35 Mounting Rails (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

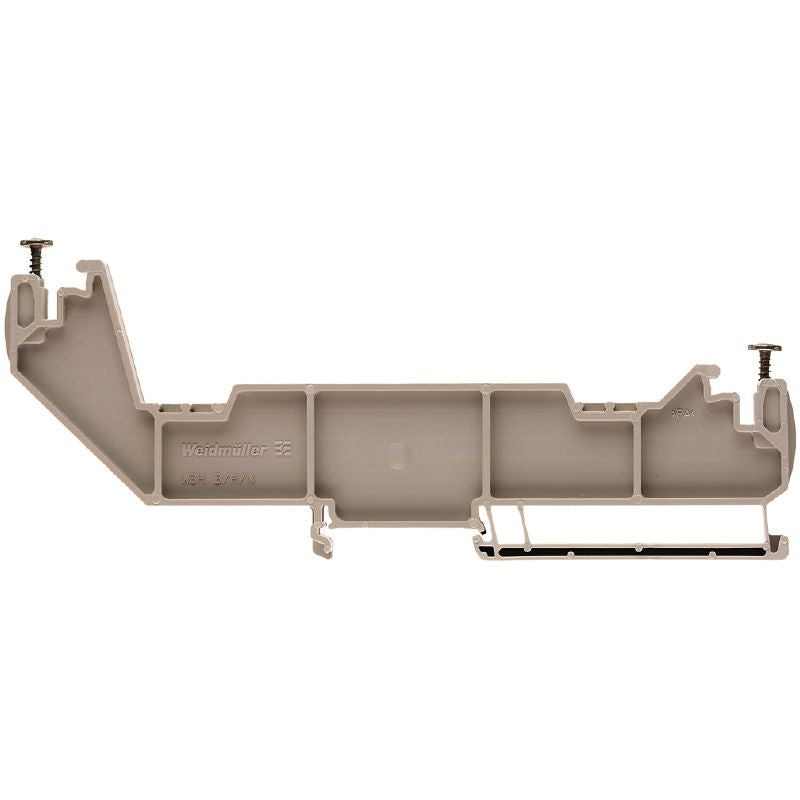

The WSH 3/H/N is engineered for seamless integration with mounting rails, boasting a compact net weight of 221 grams This component meets RoHS requirements and is designed for direct installation on TS 35 mounting rails Crafted from durable Wemid material, it showcases an elegant dark beige hue Key specifications include a pitch of 8 mm and a mounting offset of 68 mm Additionally, it is rated with a UL 94 flammability classification of V-0, although it does not support an explosion-tested variant.
Features and Benefits:
•Compliant with RoHS without exemption.
•Direct mounting installation.
•Snap-on mounting type.
•Basic material is Wemid.
•Dark beige color.
Specifications:
| Depth | 70 mm |
| Height | 173 mm |
| Width | 8 mm |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| Number of poles | 1 |
| Mounting rail | TS 35 |
| Pitch in mm (P) | 8 mm |
| Mounting offset | 68 mm |
