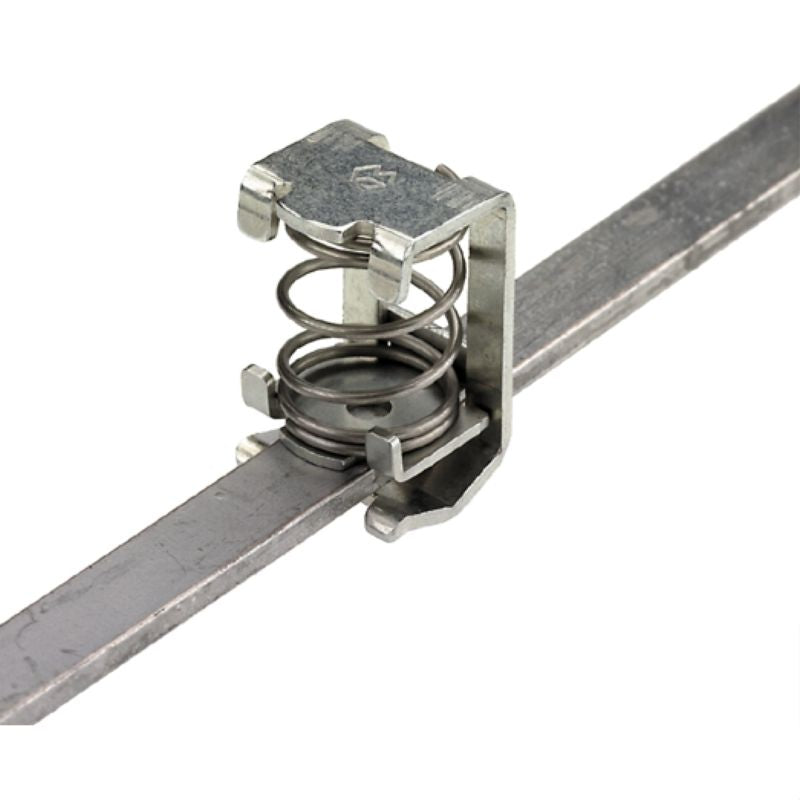

1592810000 - Steel Clamping Yoke for Busbar, 4-13.5 mm Cable Diameter (Pack of 10)
1592810000 - Steel Clamping Yoke for Busbar, 4-13.5 mm Cable Diameter (Pack of 10)
SKU: SKU: 1592810000 Download PDF
- 1592810000 - Steel Clamping Yoke for Busbar, 4-13.5 mm Cable Diameter (Pack of 10)
- 1592810000 - Steel Clamping Yoke for Busbar, 4-13.5 mm Cable Diameter (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the KLBUE 4-135 clamping yoke, expertly crafted from robust steel for reliable shield connections This unit allows easy direct attachment to a busbar without the need for an end cover plate Its connection cross-section is rated at 10 mm², offering enhanced efficiency and compliance with RoHS standards, free from exemptions and SVHC above 01 wt% Capable of operating within a temperature range of -60 °C to 130 °C, it accommodates cables with diameters between 4 mm and 13.
5 mm, ensuring versatility and performance in various conditions.
Features and Benefits:
•Explosion-tested version.
•Snap-on type of fixing.
•Direct mounting installation advice.
•Designed for clamping connections in electrical installations..
Specifications:
| Depth | 31.5 mm |
| Height | 22 mm |
| Width | 20.5 mm |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Basic material | Steel |
| Cable diameter, max. | 13.5 mm |
| Cable diameter, min. | 4 mm |
| Connection cross-section, stranded, max. | 13.5 mm² |
| Connection cross-section, stranded, min. | 4 mm² |
| Stripping length | 22 mm |
| Type of connection | Spring connection |
| Pitch in mm (P) | 20 mm |
| Rated cross-section | 10 mm² |
| RoHS Compliance Status | Compliant without exemption |
