Description:

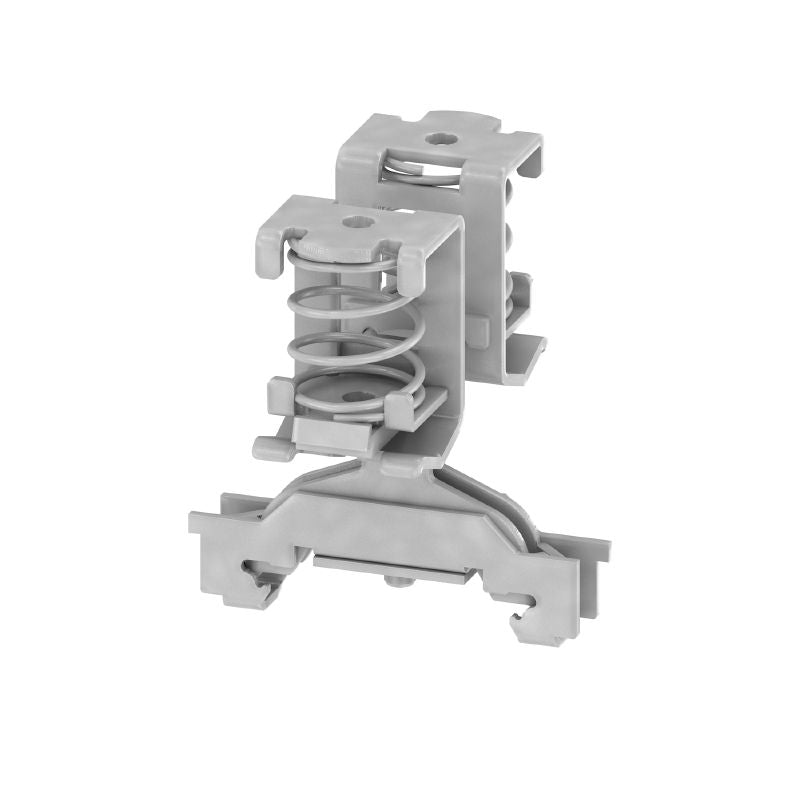

Introducing the BS 35II/KLBUE clamping yoke, a versatile solution for a variety of installation needs Crafted with steel fixings, this product adheres to RoHS regulations With dimensions of 365 mm in depth and 35 mm in height, it accommodates cables with diameters ranging between 4 mm and 135 mm This yoke is engineered to function effectively within a temperature range of -25 °C to 55 °C for storage, and -5 °C to 40 °C for operating conditions.
Designed for explosion-tested environments, its reliable clamping mechanism is easily secured through a screw-in process, ensuring safety and stability for your applications.
Features and Benefits:
•Includes clamping yoke and fixing set.
•Constructed from durable steel.
•RoHS compliant without exemption.
•Explosion-tested version available.
•Suitable for a range of cable diameters from 4 mm to 13.5 mm.
Specifications:
| Depth | 36.5 mm |
| Height | 35 mm |
| Diameter | 3 mm |
| Net weight | 68.961 g |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C...40 °C |
| Basic material | Steel |
| Type of fixing | when screwed in |
| Conductors for clamping (rated connection) | Cable diameter, max. 13.5 mm, Cable diameter, min. 4 mm |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ECLASS 15.0 | 27-25-03-90 |
