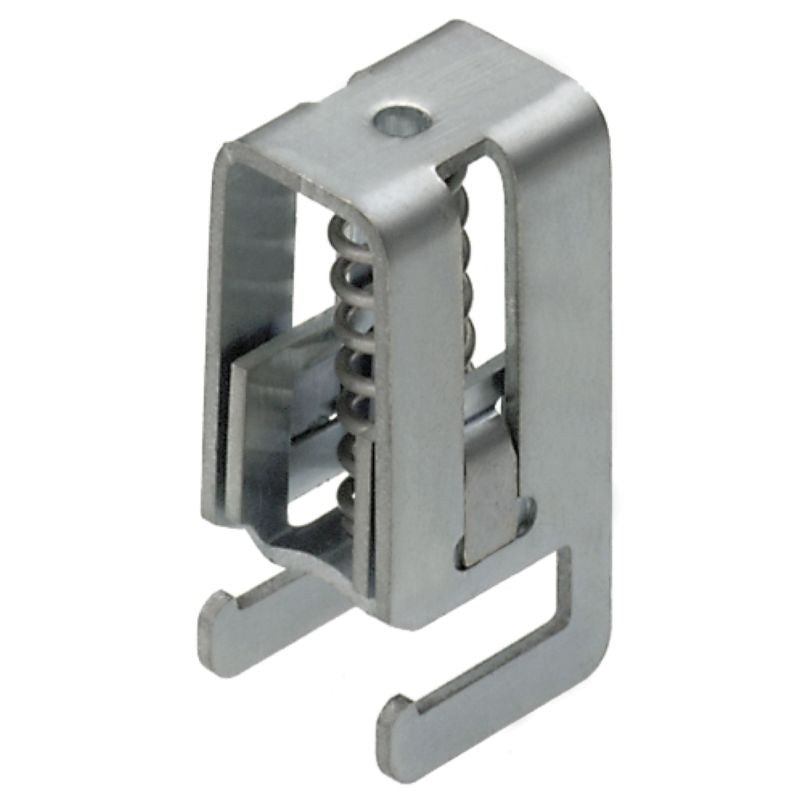

1753311001 - Steel Clamping Yoke for Busbars, -60°C to 130°C Temp Range (Pack of 10)
1753311001 - Steel Clamping Yoke for Busbars, -60°C to 130°C Temp Range (Pack of 10)
SKU: SKU: 1753311001 Download PDF
- 1753311001 - Steel Clamping Yoke for Busbars, -60°C to 130°C Temp Range (Pack of 10)
- 1753311001 - Steel Clamping Yoke for Busbars, -60°C to 130°C Temp Range (Pack of 10)
Couldn't load pickup availability
Description:
Introducing the KLBUE CO 1 clamping yoke, expertly crafted from durable steel This component is tailored for direct installation onto a busbar and adheres to RoHS standards for safety and environmental compliance Designed to operate effectively in a variety of environmental scenarios, it maintains its performance across an extensive temperature range, with storage capabilities from -25 °C to 55 °C and continuous operation tolerances between -60 °C and 130 °C.
Features and Benefits:
•Material: Steel.
•Clamping yoke designed for a shield connection.
•Requires no end cover plate.
•Mounting rail compatible with busbar.
•Direct mounting installation.
•Snap-on type of fixing.
•Rated connection accommodates cable diameters between 3 mm and 10 mm.
•Used for direct mounting in various electrical installations.
Specifications:
| Depth | 32 mm |
| Height | 18 mm |
| Width | 13.2 mm |
| Net weight | 11.9 g |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Cable diameter, max | 10 mm |
| Cable diameter, min | 3 mm |
| Connection cross-section, stranded, max | 10 mm² |
| Connection cross-section, stranded, min | 3 mm² |
| Stripping length | 18 mm |
| Type of connection | Spring connection |
| Rated cross-section | 10 mm² |
| ETIM classification | EC002020 |
| ECLASS classification | 27-14-11-50 |
