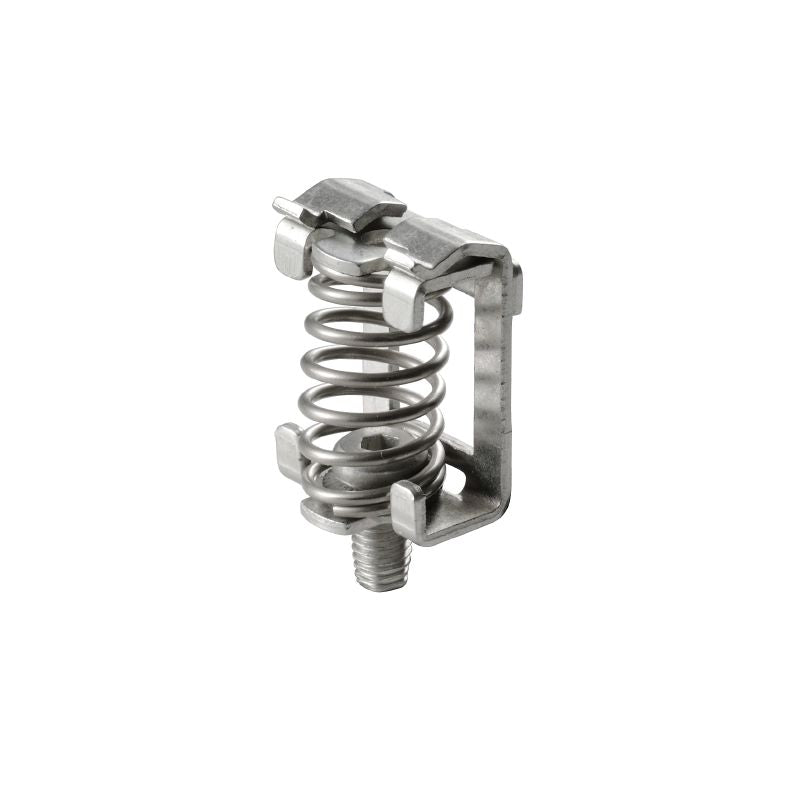

1835840000 - Steel Clamping Yoke for Direct Mounting Connections (Pack of 10)
1835840000 - Steel Clamping Yoke for Direct Mounting Connections (Pack of 10)
SKU: SKU: 1835840000 Download PDF
- 1835840000 - Steel Clamping Yoke for Direct Mounting Connections (Pack of 10)
- 1835840000 - Steel Clamping Yoke for Direct Mounting Connections (Pack of 10)
Couldn't load pickup availability
Description:
Introducing the KLBUE 3-8 SDSC clamping yoke, expertly crafted from robust steel for optimal installation performance This component meets RoHS standards without any exceptions, ensuring eco-friendly compliance Designed specifically for shield connections, the yoke is perfect for straightforward installation using screw mounting A reliable choice for your connection needs, it combines durability with functionality.
Features and Benefits:
•Compliant with RoHS standards.
•Designed for shield connections.
•Direct mounting installation.
•Screw type mounting.
Specifications:
| Depth | 25.9 mm |
| Height | 18 mm |
| Width | 14.4 mm |
| Net weight | 10.824 g |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Continuous operating temp. min. | -60 °C |
| Continuous operating temp. max. | 130 °C |
| Cable diameter, max. | 8 mm |
| Cable diameter, min. | 3 mm |
| Connection cross-section, stranded, max. | 8 mm² |
| Connection cross-section, stranded, min. | 3 mm² |
| Number of connections | 1 |
| Stripping length | 18 mm |
| Type of connection | Spring connection |
| Rated cross-section | 8 mm² |
| Basic material | Steel |
| Explosion-tested version | No |
| End cover plate required | No |
| Mounting rail | Mounting plate |
