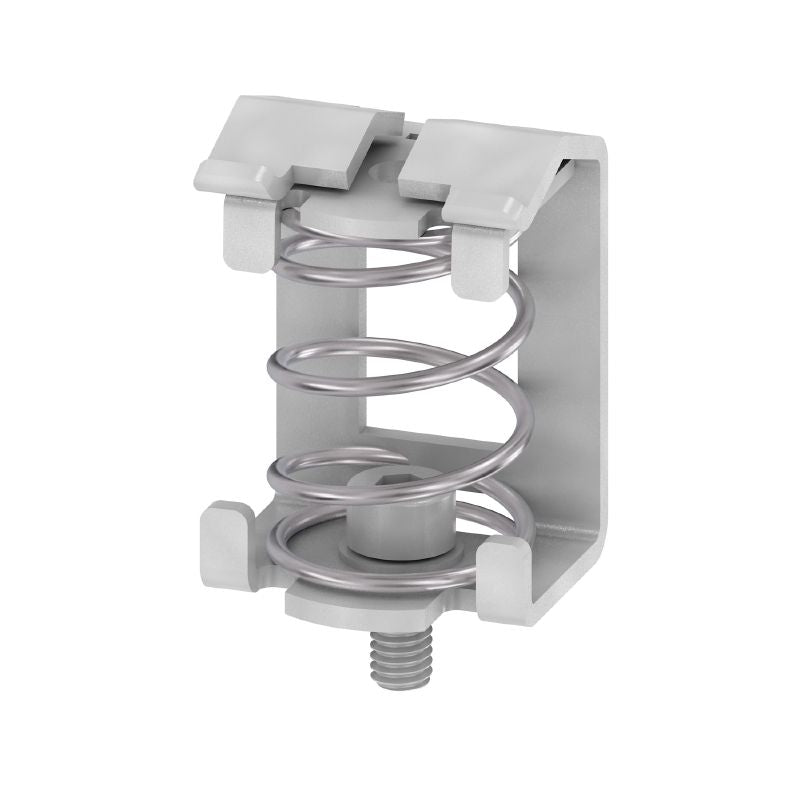

1791210000 - Steel Clamping Yoke, 22mm Height, RoHS Compliant (Pack of 100)
1791210000 - Steel Clamping Yoke, 22mm Height, RoHS Compliant (Pack of 100)
SKU: SKU: 1791210000 Download PDF
- 1791210000 - Steel Clamping Yoke, 22mm Height, RoHS Compliant (Pack of 100)
- 1791210000 - Steel Clamping Yoke, 22mm Height, RoHS Compliant (Pack of 100)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the KLBUE 4-135 SC, a robust solution for clamp connections that meets RoHS standards Constructed from durable steel, this clamping yoke measures 3145 mm in depth, 22 mm in height, and 201 mm in width, making it a compact choice for various applications It allows for direct mounting through an easy snap-on fixing technique and incorporates a spring connection that securely clamps conductors.
Suitable for a wide temperature range of -60 °C to 130 °C, this product is built to perform reliably in diverse environments.
Features and Benefits:
•Compliant with RoHS regulations.
•Suitable for direct mounting.
•Spring connection type for better conductor clamping.
Specifications:
| Depth | 31.45 mm |
| Height | 22 mm |
| Width | 20.1 mm |
| Cable diameter, max. | 13.5 mm |
| Cable diameter, min. | 4 mm |
| Connection cross-section, stranded, max. | 13.5 mm² |
| Connection cross-section, stranded, min. | 4 mm² |
| Stripping length | 22 mm |
| Rated cross-section | 10 mm² |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Basic material | Steel |
| UL 94 flammability rating | None |
| Mounting rail | Mounting plate |
