1791220000 - Steel Clamping Yoke for Shield Connection, No Cover Needed (Pack of 100)
1791220000 - Steel Clamping Yoke for Shield Connection, No Cover Needed (Pack of 100)
SKU: SKU: 1791220000 Download PDF
- 1791220000 - Steel Clamping Yoke for Shield Connection, No Cover Needed (Pack of 100)
- 1791220000 - Steel Clamping Yoke for Shield Connection, No Cover Needed (Pack of 100)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

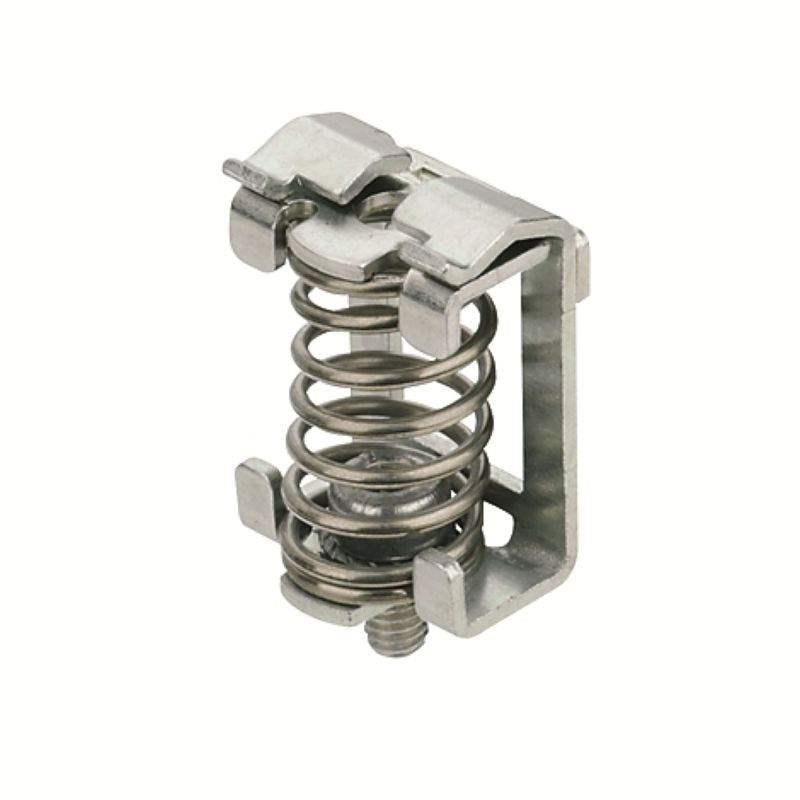

Introducing the KLBUE 3-8 SC clamping yoke, expertly crafted from durable steel This eco-friendly product adheres to RoHS standards without exemptions and boasts a minimal carbon footprint of just 0067 kg CO2 equivalent from cradle to gate Designed for ease of use, it facilitates shield connections without the necessity for an end cover plate, allowing for straightforward direct mounting with screws.
This yoke is an excellent choice for efficient and reliable installations.
Features and Benefits:
•Compliant with RoHS.
•Cradle to gate carbon footprint of 0.067 kg CO2 equivalent.
•Direct mounting installation.
•Uses a spring connection type.
•Suitable for shield connections.
Specifications:
| Depth | 26 mm |
| Height | 18.5 mm |
| Width | 14.5 mm |
| Mounting dimension - width | 13.5 mm |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Basic material | Steel |
| Colour | silver |
| Cable diameter, max. | 8 mm |
| Cable diameter, min. | 3 mm |
| Connection cross-section, stranded, max. | 8 mm² |
| Connection cross-section, stranded, min. | 3 mm² |
| Stripping length | 18.5 mm |
| Rated cross-section | 8 mm² |
| Mounting rail | Mounting plate |
